11.4 EAM06: Terminal block for inputs and outputs
Order Code terminal block
/
for I/Os without luminous indicator for X11, X12, X22
EAM 0 6 / 0 1
for I/Os with luminous indicator for X12, X22
EAM 0 6 / 0 2
The terminal block EAM06/.. can be used to route the Compax3 plug connector
X11 or X12 for further wiring to a terminal strip and to a Sub-D plug connector.
Via a supporting rail (Design:
or ) the terminal block can be installed on
a mounting rail in the control cabinet.
EAM06/ is available in 2 variants:
 EAM06/01: Terminal block for X11, X12, X22 without luminous indicator
 EAM06/02: Terminal block for X12, X22 with luminous indicator
Corresponding connecting cables EAM06 - Compax3 are available:
 from X11 - EAM06/01: SSK23/..
 from X12, X22 - EAM06/xx: SSK24/..

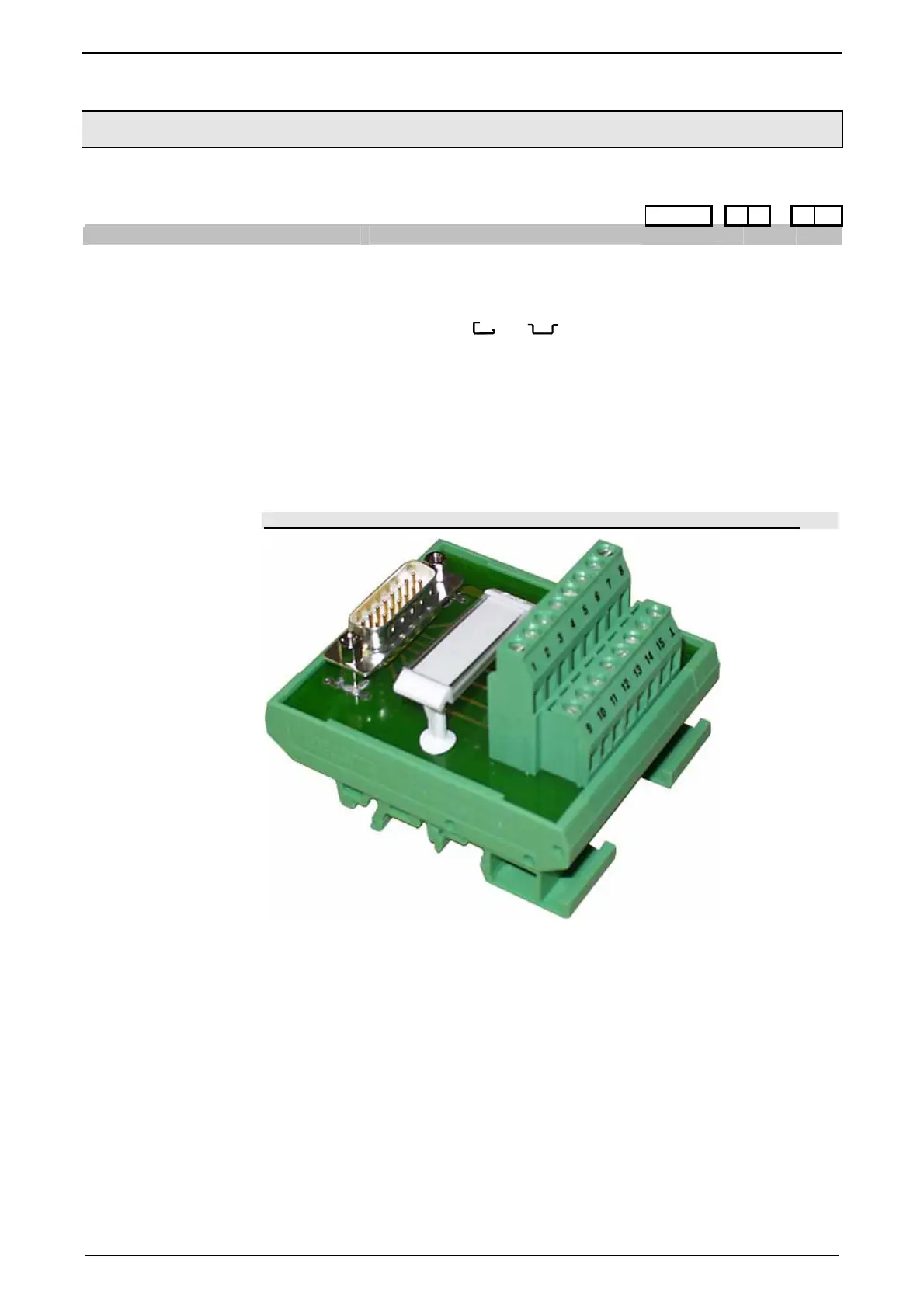

EAM6/01: Terminal block without luminous indicator for X11, X12 or X22
Width: 67.5mm
