Compax3 Accessories
192-121102 N04 June 2008 449
Function of the HEDA LEDs
Green LED (left)
HEDA module energized
Red LED (right)
Error in the receive area
Possible causes:
 at the Master
 no slave sending back
 Wrong cabling
 Terminal plug is missing
 several masters are sending in the same slot
 at the slave
 several masters in the system
 no master active
 Terminal plug is missing
 no transmission from one or several receive slots (neither by the master nor by
another slave)

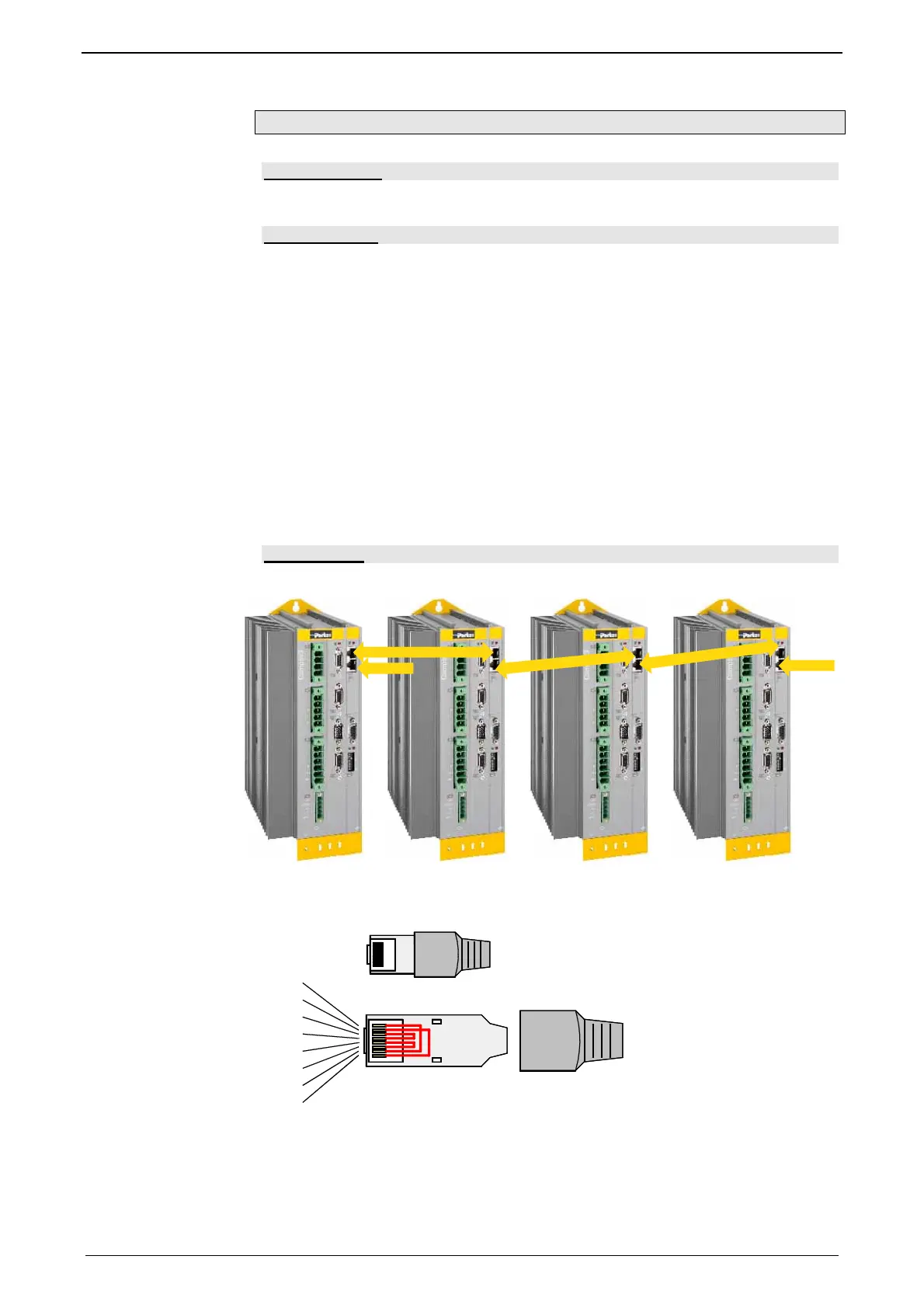

HEDA-wiring:
HEDA-
M
aster
BUS07/01
BUS07/01
SSK28/..
S
S
K
28
/
.
.
S
S
K
2
8
/
.
.
Layout of SSK28 (see page 430, see page 445)
Design of the HEDA bus terminator BUS 07/01:
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1
Pin 7
Pin 8
Jumpers: 1-7, 2-8, 3-4, 5-6

Parker Compax3 Fluid T40 Specifications

General

Series	Compax3
Power Supply Voltage	24 VDC
Output Current	40A
Protection Class	IP20
Communication	CANopen, RS232
Operating Temperature	0°C to +45°C
Relative Humidity	5 to 95 %, non-condensing
Storage Temperature	-25 to +70 °C
