Due to its high functionality, Compax3 in the version “IEC 61131-3 - Positioning
with function modules based on PLCopen” forms an ideal basis for many
applications in high-performance motion automation.
A standard with general applicability was created with Standard IEC 61131-3. The
programming system is equipped with a series of functions in addition to the
compliant editor. The Motion Control functions specified in PLCopen are also
provided by Parker as a library with the device and control software.
The graphical program editor supports the following functions:
Ladder diagram
Function block diagram (structurally-guided)
Function block diagram (free graphical editor)
The text-oriented editor supports programming in
Instruction list
Structured text
Programming of Compax3 based on IEC 61131-3 is also made considerably easier
by a series of additional functions. This includes in particular Syntax Coloring,
multi-level undo/redo and context-sensitive input help.

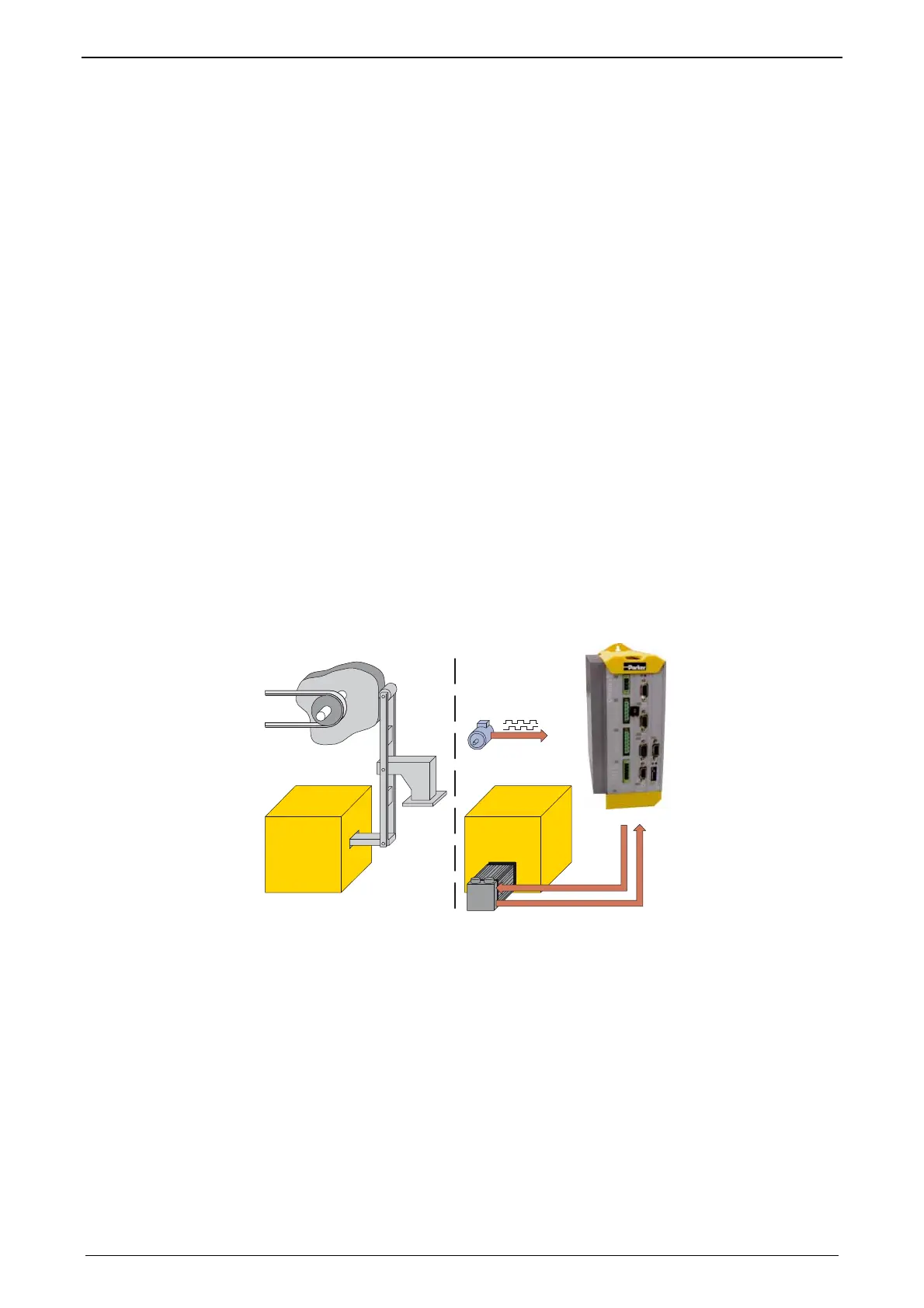

Rising rationalization pressure and an increasing degree of automation in process
engineering demand modern and flexible drive concepts. The introduction of digital
and communicating control devices was an important step towards the
decentralization of control and regulation tasks. An increasing number of
mechanical construction components can be replaced by programmable servo
drives.
Process
Process
IEC 61131-3
Programming
Cam control T40
