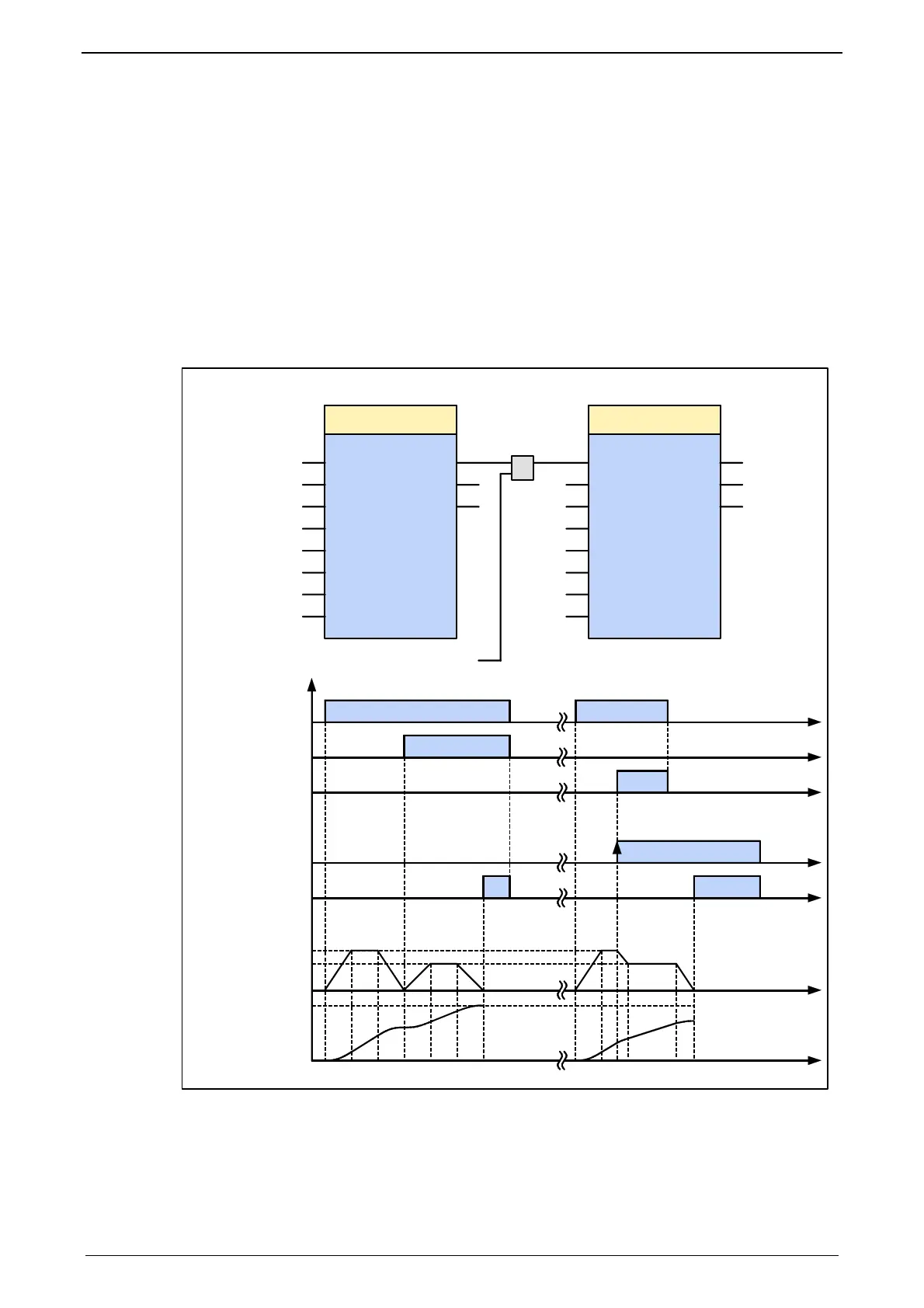

The following illustration shows two examples of the combination of two
MC_MoveRelative modules.
 The left part (a) of the time diagram shows a case in which the second function
module is executed after the first function module..
If the first function module has reached 60 units, the "Done" output gives the
execution command to the second function module, which then moves an
addition 40 units.
 The right part (b) of the diagram shows a case in which the second function
module is activated while the first function module is being executed. Because
the second module is started during the execution of the first function module, the
first function module is automatically interrupted.
The second function module immediately moves an additional 40 units whether or
not the 60 units of the first function were already reached.
