Explanation:
 The entire curve line is 720° long, the reset distance in the slave axis
configuration stands on 720° (Configuration: Reference system).
 The change of cams is triggered with the Done of the curve activated before
(CTS1 ... CTS3). The Done output follows, if the change into the respective curve
has been executed.
 The axis is synchronized with input I2 (CamIn) and at the same time the
curve generator (CTS1) is started.1
This ensures that no increments are lost with running master.

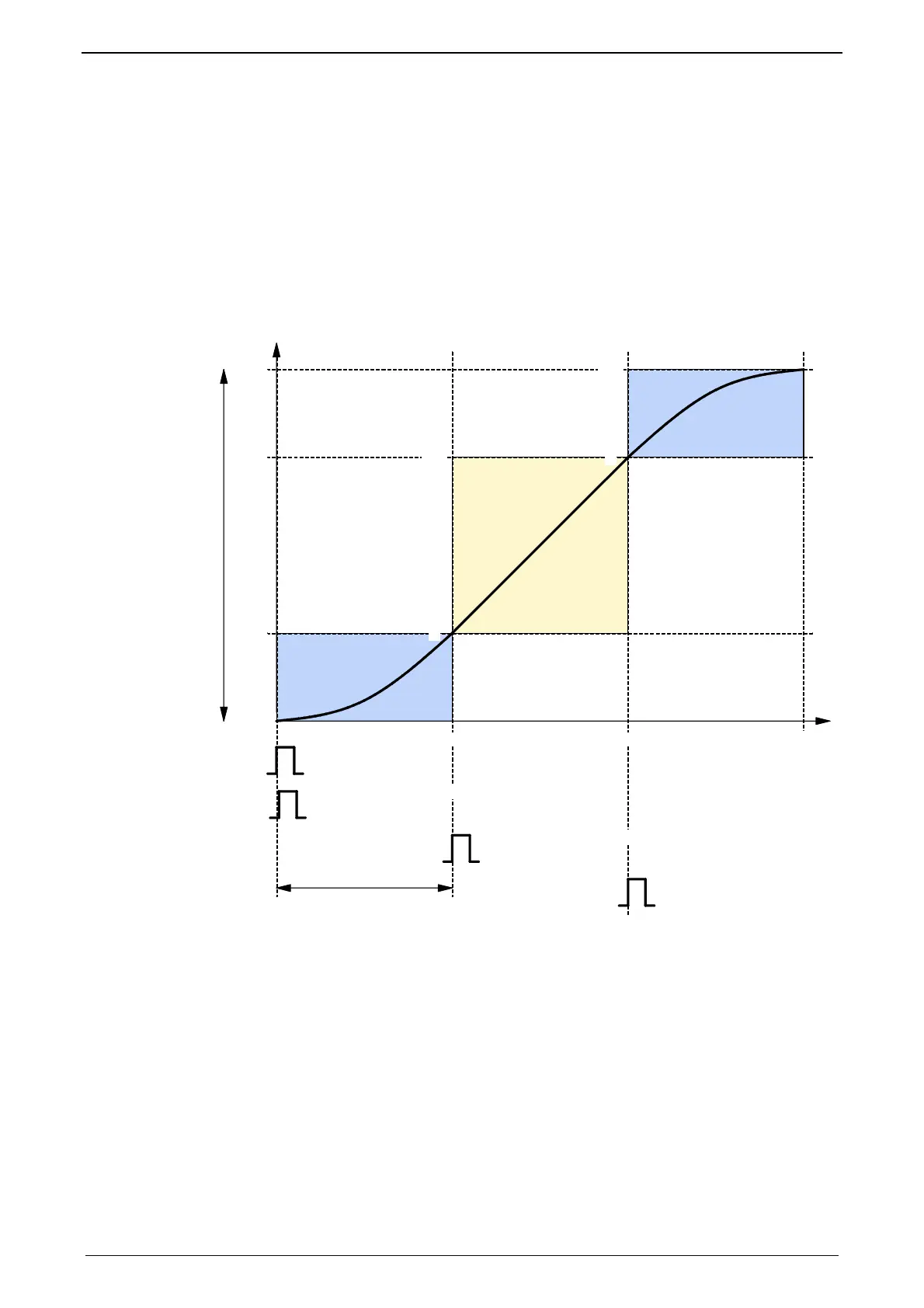

Design of a curve:
0°
180°
540°
720°
360° 720° 1080°
Curve 1
0°
Curve 2
Curve 3
360°
180°
0°
CTS1.Execute (I2)
CamIn.Execute
CTS1.Done -> CTS2.Execute
CTS2.Done -> CTS3.Execute
CTS3.Done
P
o
s
it
io
n
R
e
s
e
t
D
is
t
a
n
c
e
S
la
v
e
Position Reset Distance Master
Position Reset Distance Slave: Reset distance slave
Position Reset Distance Master: Reset distance Master = time axis in the Cam
Designer
