Parker EME
Motion control
192-121102 N04 June 2008 275

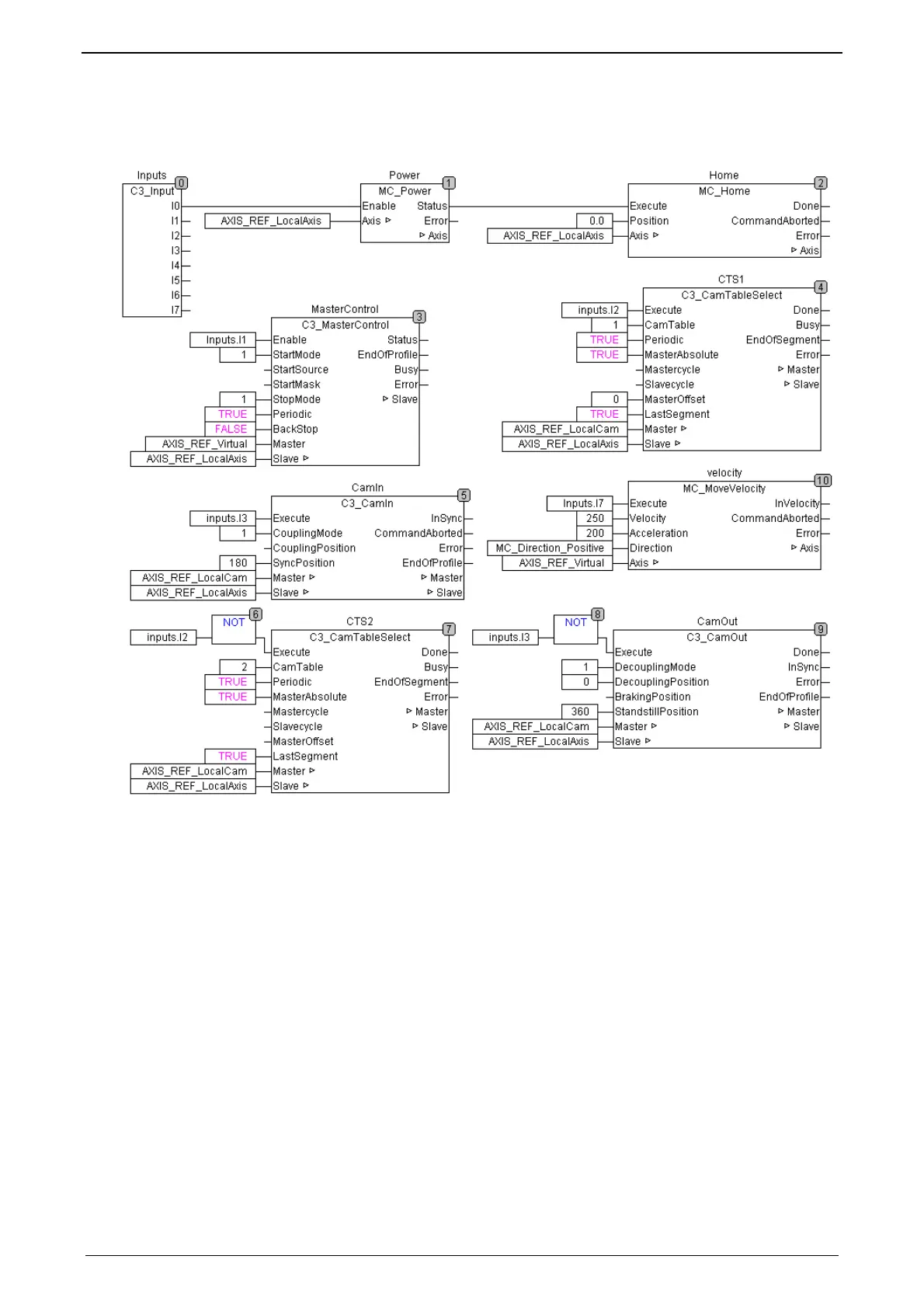

Solution:
Explanations:
Via Input I2 either curve 1 (CTS1) or curve 2 (CTS2) is activated, both in the
absolute mode (MasterAbsolute=TRUE).
The detection starts with I1 (MasterControl).
Coupling in takes place with rising edge of I3, decoupling takes place with falling
edge of I3.
