Boundary conditions:
Setpoint position of the registration mark: 90°.
Slave standstill at 180°.
The object C3Cam.StatusMaster_PositionCamUnits (o3030.24) is used as
source for the C3_Touchprobe module and is set against the reg setpoint
position.

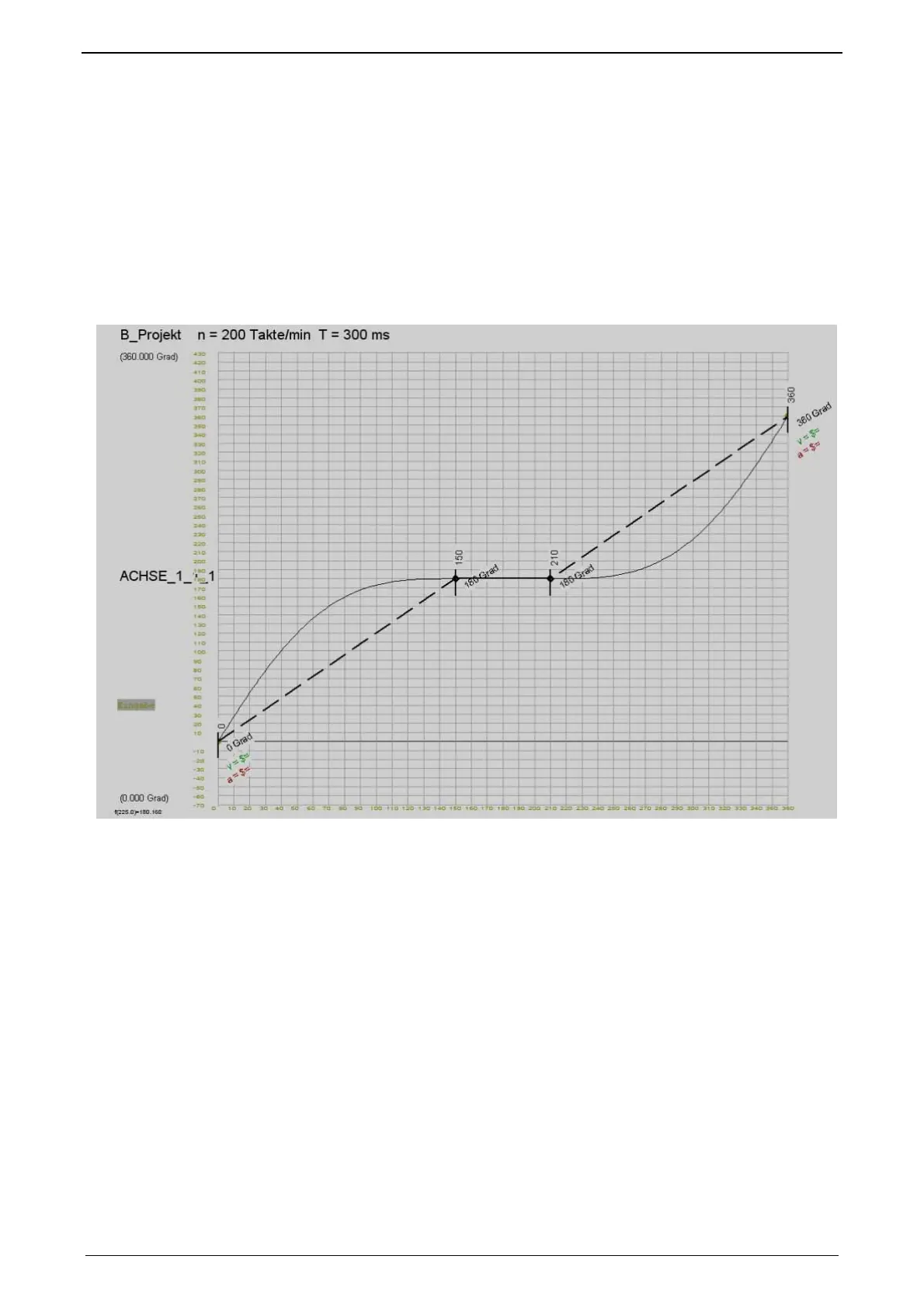

The adjustment movement is made via MC_Phasing (see the signal image (see
page 225) of the cam).
curve
