Parker Compax3 Fluid T40

Parker EME
Communication
192-121102 N04 June 2008 397
F1 F2 F3 F4
Receive
F1 F2 F3 F4
Transmit
HEDA Master
F1 F2 F3 F4
Transmit
F1 F2 F3 F4
Receive
HEDA Slave
F1 F2 F3 F4
Transmit
F1 F2 F3 F4
Receive
HEDA Slave
F1 F2 F3 F4
Transmit
F1 F2 F3 F4
Receive
HEDA Slave
S0
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S0
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S17
S16
S15
S14
S13
S12
S11
S10
S9
S8
S7
S6
S5
S4
S3
S2
S1
S0
S17
S16
S15
S14
S13
S12
S11
S10
S9
S8
S7
S6
S5
S4
S3
S2
S1
S0
Mapping Table
Mapping Table

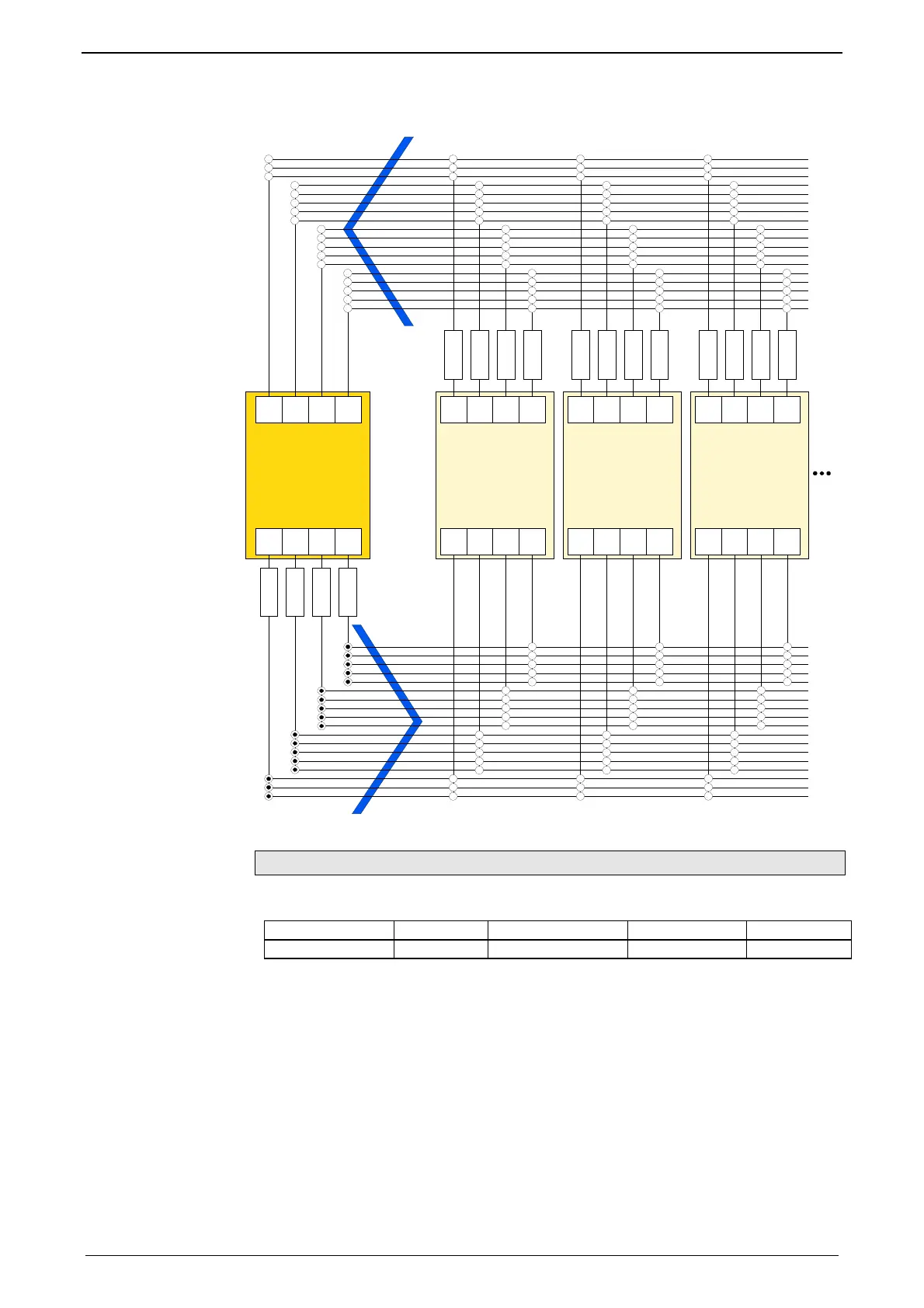

Functionality:
The master can send 4 different frames (F1,... F4). A frame can be sent from
several slots:
Frame: F1 F2 F3 F4
possible slots: 0 ... 2 3 ... 7 8 ... 12 13 ... 17
Each frame is assigned a mapping table number.
The individual slaves read in the slot from where their relevant data are sent.
It is necessary to define a mapping table in the slave, stating where the individual
process data are to be written (e.g. into an array-object).
The assignment of the mapping table is made via the mapping table number which
is transferred via HEDA.
For this reason, the receive mapping table number and the transfer mapping table
number must always be the same.
Receive-Mapping-Tablen-Number = Transmit-Mapping-Table-Number
Important:
