Ricoh A229 - Drive Mechanism

DRUM UNIT
2-59
SM A229
Detailed
Descriptions
Drive Mechanism

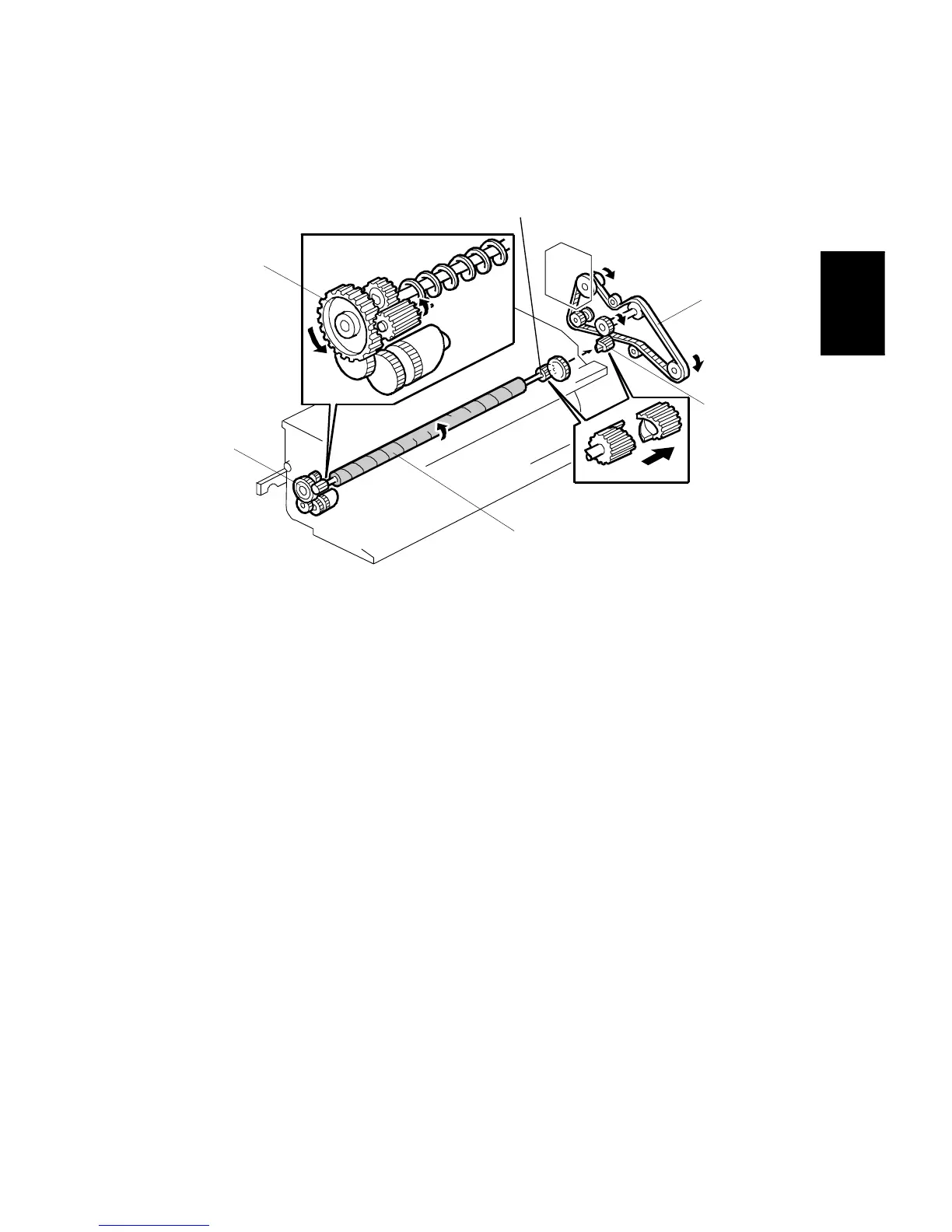

Drive from the drum motor is transmitted to the cleaning unit drive gear via the
timing belt [A] and the cleaning unit coupling [B]. The cleaning unit drive gear [C]
then transmits the drive to the front through the cleaning brush [D]. The gear at the
front drives the toner collection coil gear [E].
A229D562.WMF
[A]
[B]
[D]
[E]
[E]
[C]
