FUSING UNIT
SM 5-83 A229
Replacement
and
Adjustment
5.9 FUSING UNIT
5.9.1 FUSING UNIT REMOVAL
1. Turn off the main switch.
2. Open the front door.
3. Remove the stopper [A] (1 screw).

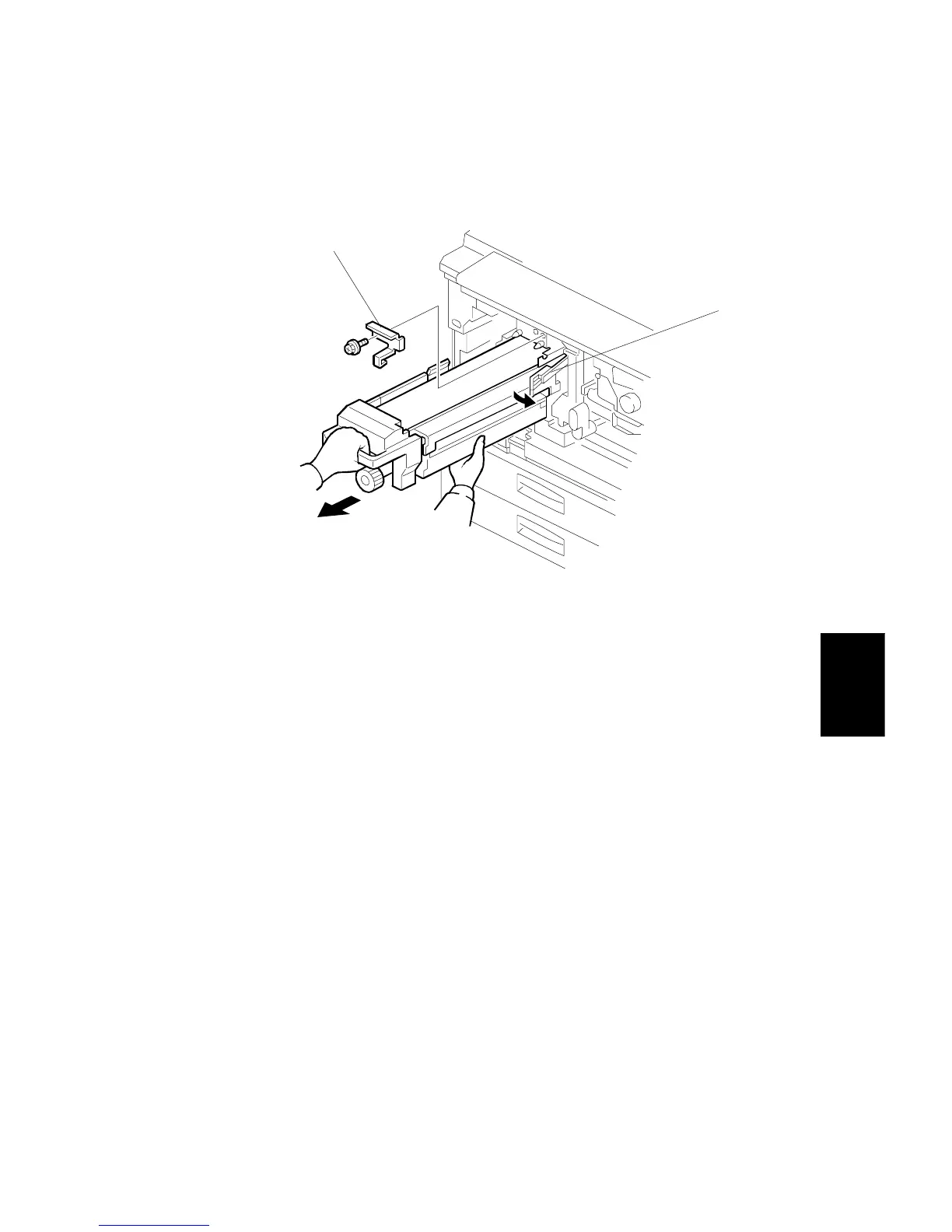

4. While releasing the lever [B], pull out the fusing unit as shown.
NOTE:
Hold the bottom of the fusing unit as shown.
A229R517.WMF
[A]
[B]
