PAPER STACK HEIGHT DETECTION
SM 8-9 A229
Large
Capacity
Tray A698

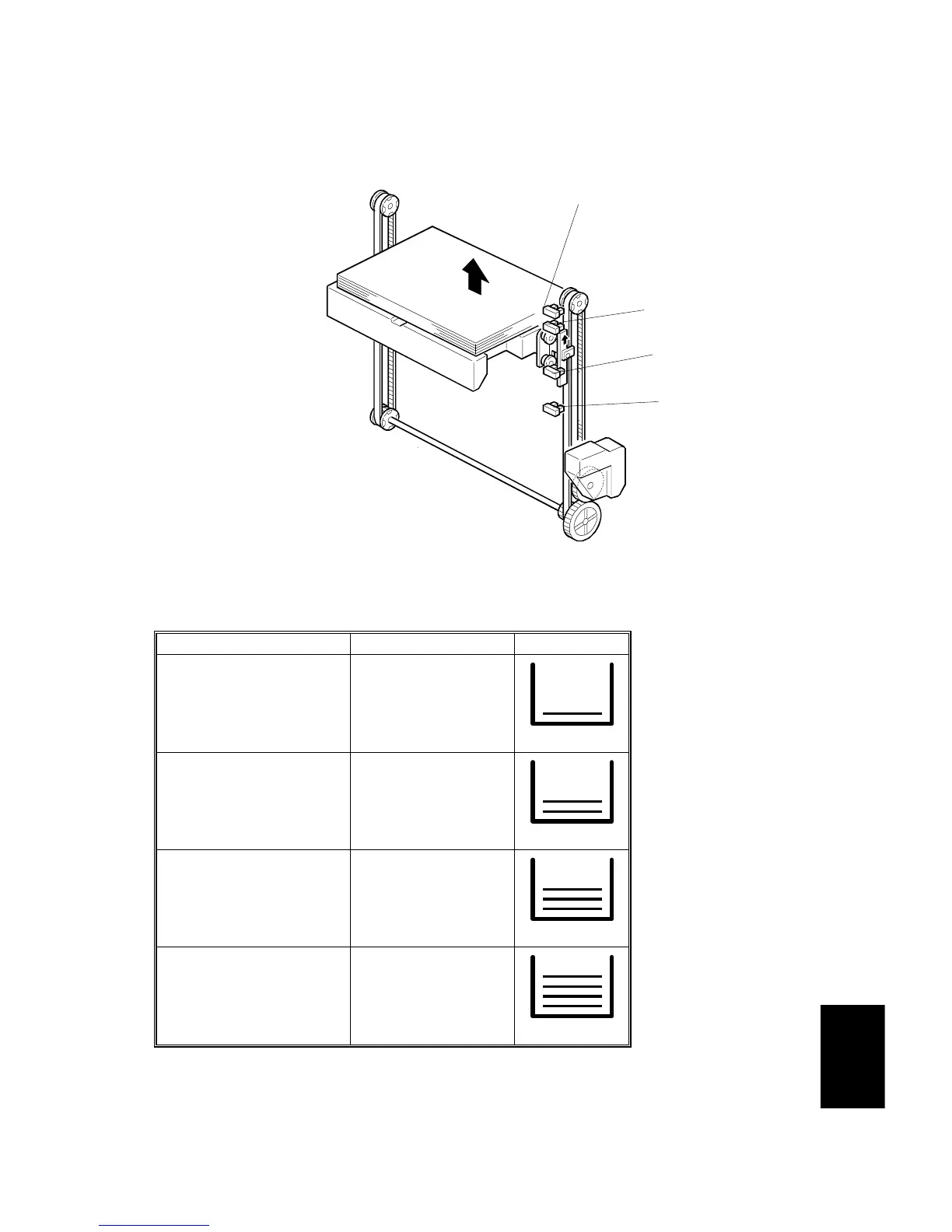

2.3 PAPER STACK HEIGHT DETECTION
The amount of the paper in the tray is detected by four sensors (paper height
sensor 1 [A], 2 [B], 3 [C] and near end sensor [D].)
Sensor Remaining amount Display
Near End Sensor Approx. 80 sheets
A698D510.WMF
Paper Height 1 Sensor Approx. 300 sheets
A698D511.WMF
Paper Height 2 Sensor Approx. 1000 sheets
A698D512.WMF
Paper Height 3 Sensor Approx. 2000 sheets
A698D513.WMF
A698D110.WMF
[A]
[B]
[C]
[D]
