DOCUMENT FEEDER
2-12
A229 SM

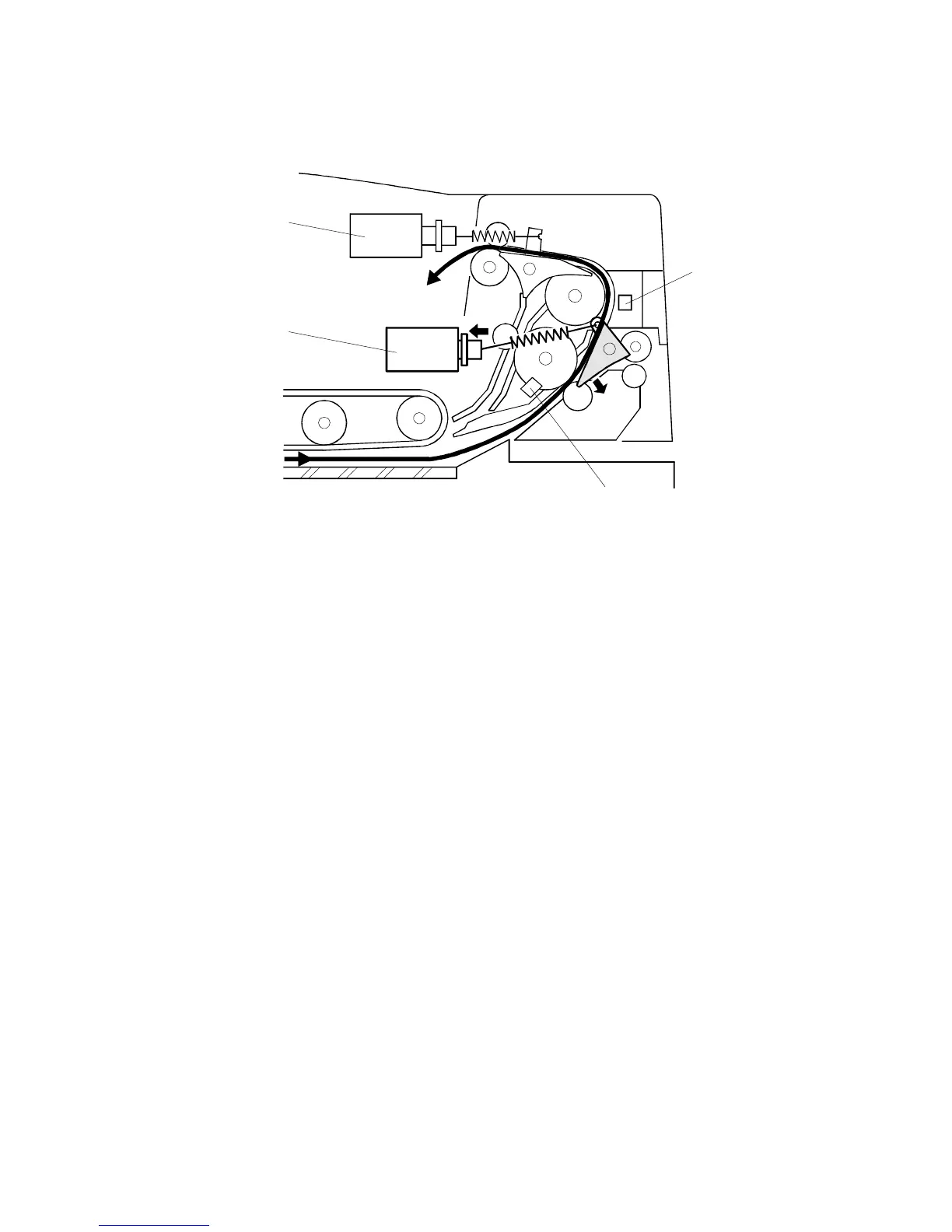

Original Exit Mechanism (Double-Sided Original Mode)
The exit gate solenoid [A] turns on and the inverter gate solenoid [B] remains off,
and the original is fed out to the upper tray. The transport belt motor turns off when
the trailing edge of the original passes through the exit sensor [C].
To stack the originals neatly on the upper tray, the feed-out motor speed is
reduced shortly after the trailing edge of the original turns off the inverter sensor
[D].
A806D112.WMF
[A]
[B]
[C]
[D]
