ELECTRICAL COMPONENT LAYOUT
SM 8-3 A229
Large
Capacity
Tray A698

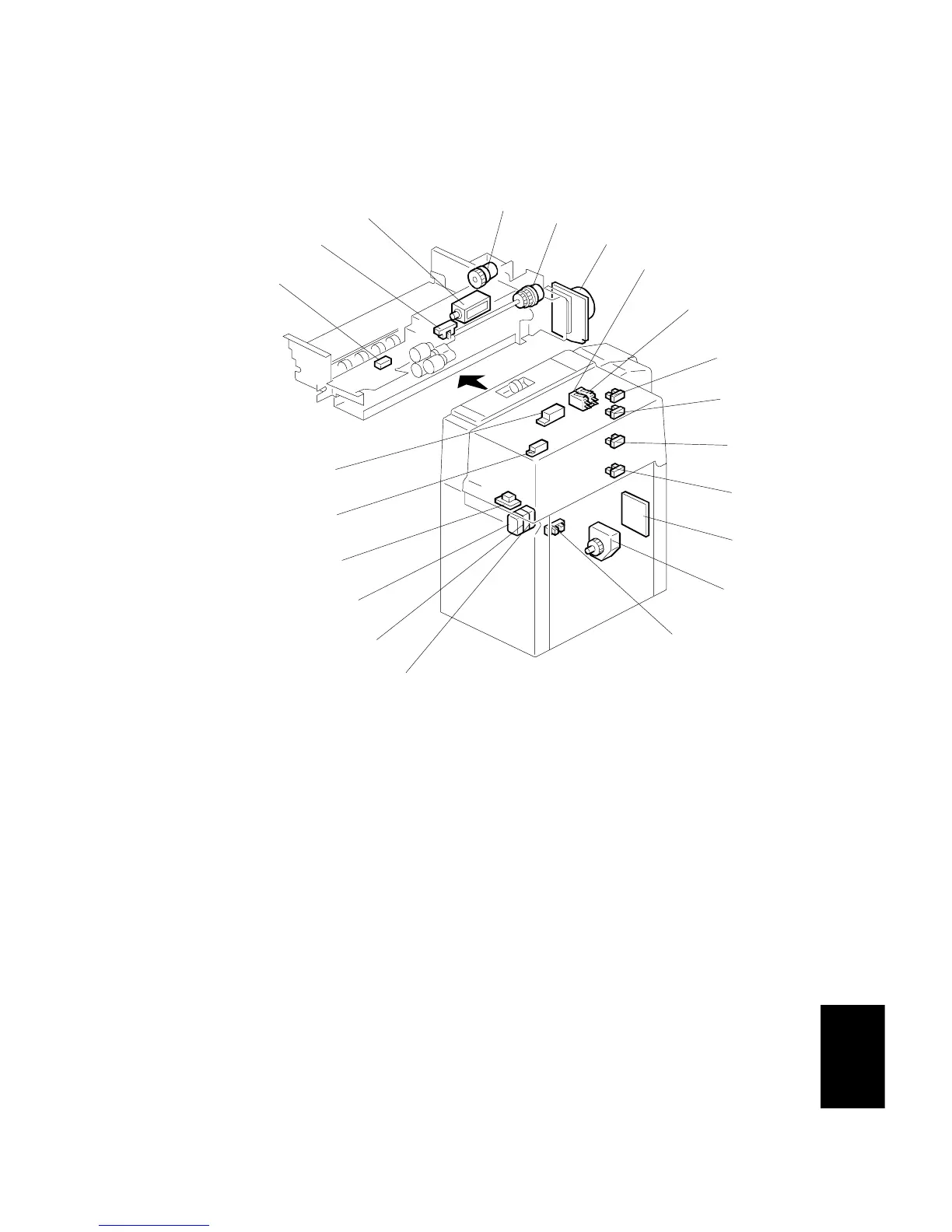

1.3 ELECTRICAL COMPONENT LAYOUT
1. Paper Feed Sensor
2. Lift Sensor
3. Pick-up Solenoid
4. Relay Clutch
5. Paper Feed Clutch
6. LCT Motor
7. Feed Unit Cover Switch 1
8. Feed Unit Cover Switch 2
9. Near End Sensor
10. Paper Height Sensor 1
11. Paper Height Sensor 2
12. Paper Height Sensor 3
13. LCT Interface Board
14. Lift Motor
15. Down Sensor
16. Tray Cover Switch 1
17. Tray Cover Switch 2
18. Tray Cover Switch 3
19. Down Switch
20. Paper Position Sensor
21. Paper End Sensor
A698D102.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
To Next Page
