TRAY AND STAPLER JUNCTION GATE MECHANISM
A229 7-8 SM
2. DETAILED DESCRIPTIONS

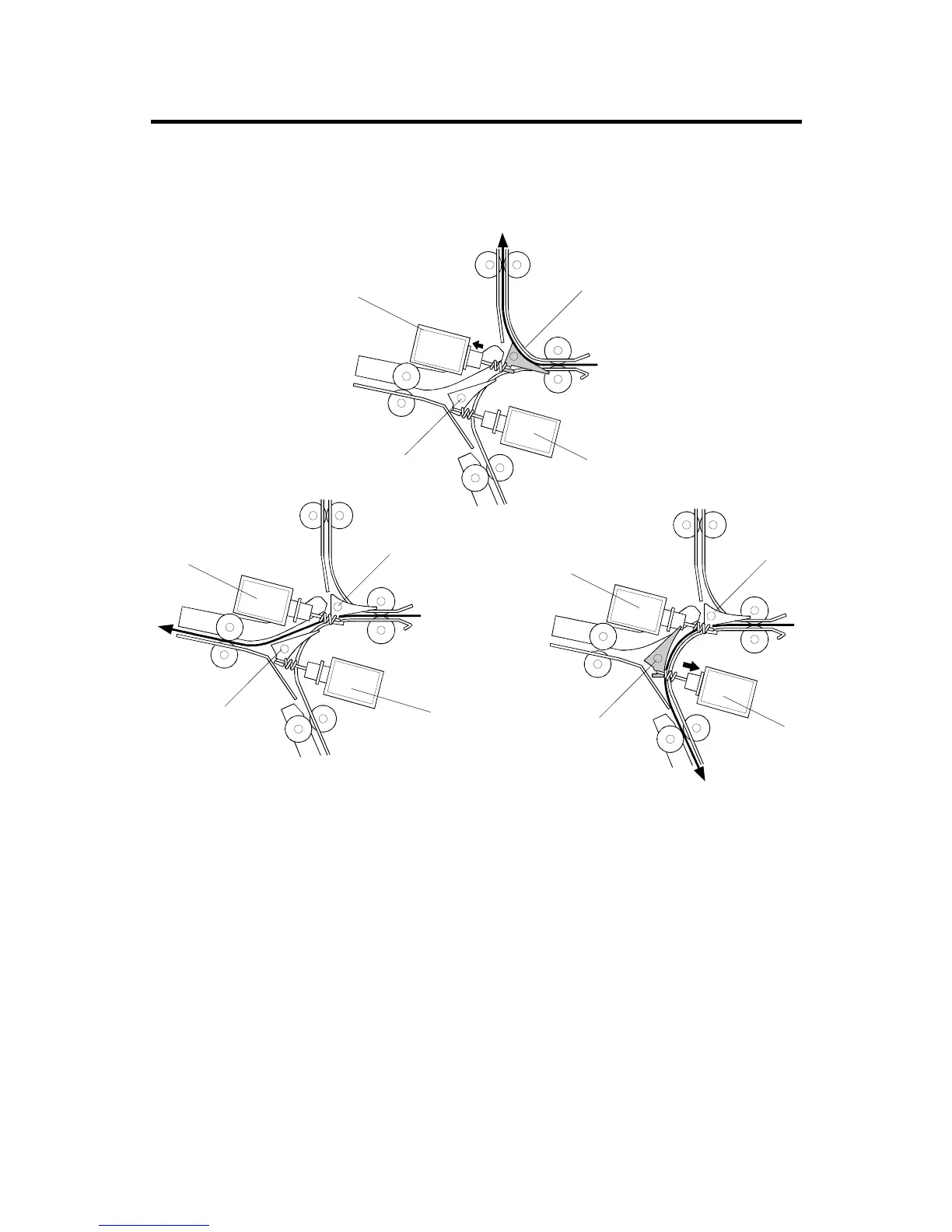

2.1 TRAY AND STAPLER JUNCTION GATE MECHANISM
Depending on the finishing mode, the copies are directed up, straight through, or
down by the combination of the tray junction gate [A] and stapler junction gate [B].
These gates are controlled by the tray junction gate solenoid [C] and stapler
junction gate solenoid [D].
Upper tray mode
The tray junction gate solenoid turns on. The copies go up to the upper tray.
Sort/stack mode
The tray junction gate solenoid and the stapler junction gate solenoid remain off.
The copies are sent to the shift tray directly.
Staple mode
The tray junction gate solenoid remains off and the stapler junction gate solenoid
turns on. The copies go downwards to the jogger unit.
A697D512.WMF
A697D500.WMF
[D]
[A]
[C]
[B]
- Upper tray mode -
[D]
[A]
[C]
[B]
- Staple mode -
[A]
[C]
[B]
[D]
- Sort/stack mode -
Rev. 12/15/98
