2.1.5 ORIGINAL FEED DRIVE MECHANISM

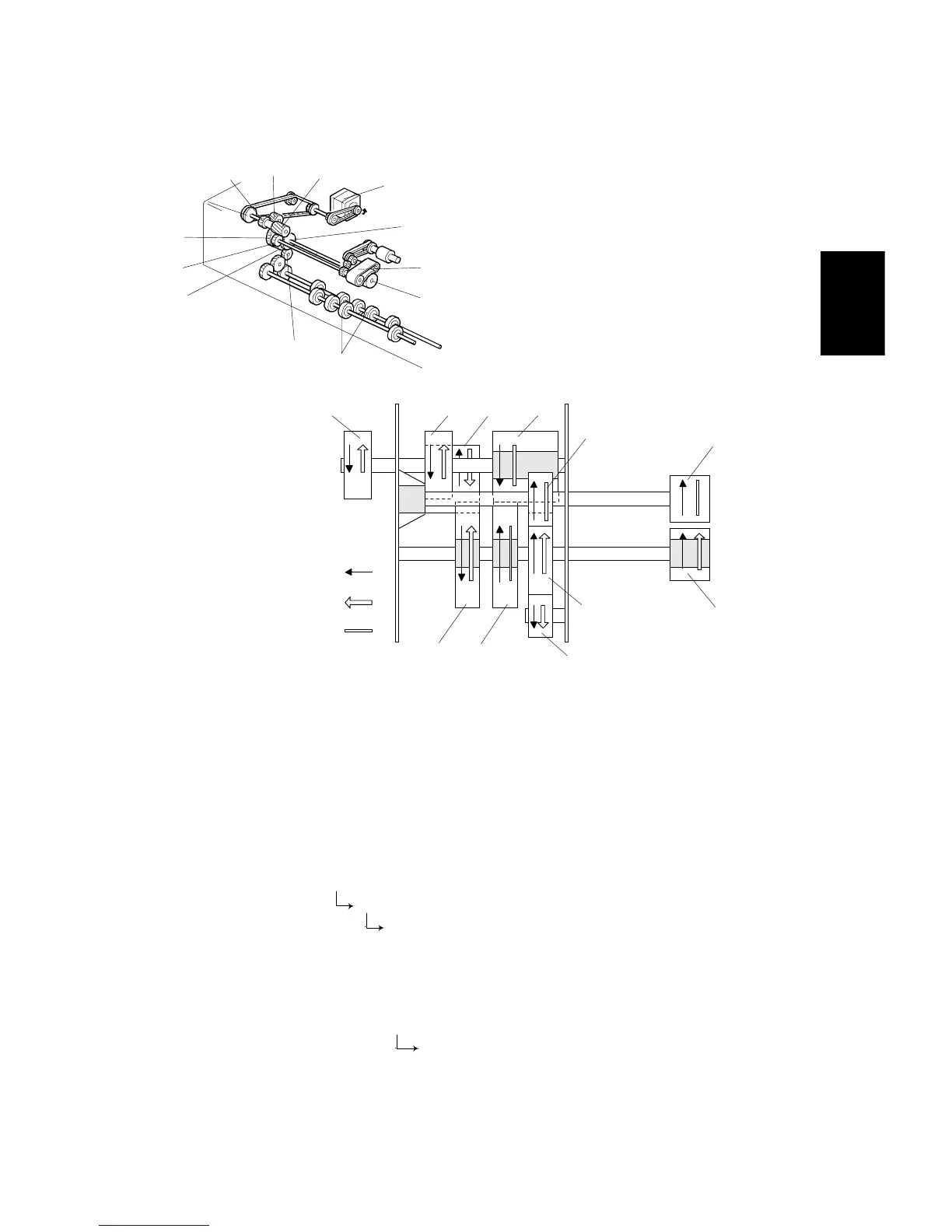

The separation roller [A] and transport rollers [B] always turn in the same direction
because of a combination of gears and one-way clutches, even if the feed-in motor
[C] changes direction. However, the feed belt [D] stops during original feed.
The gears H, L, and M each have a one-way clutch.
Original Feed Start
When the feed-in motor turns on, the drive is transferred as follows:
Original Feed
When the leading edge of the original turns on the entrance sensor, the feed-in
motor turns in reverse, and the drive is transferred as follows:
