PAPER EXIT/DUPLEX
2-116
A229 SM
2.10.3 DUPLEX DRIVE MECHANISM

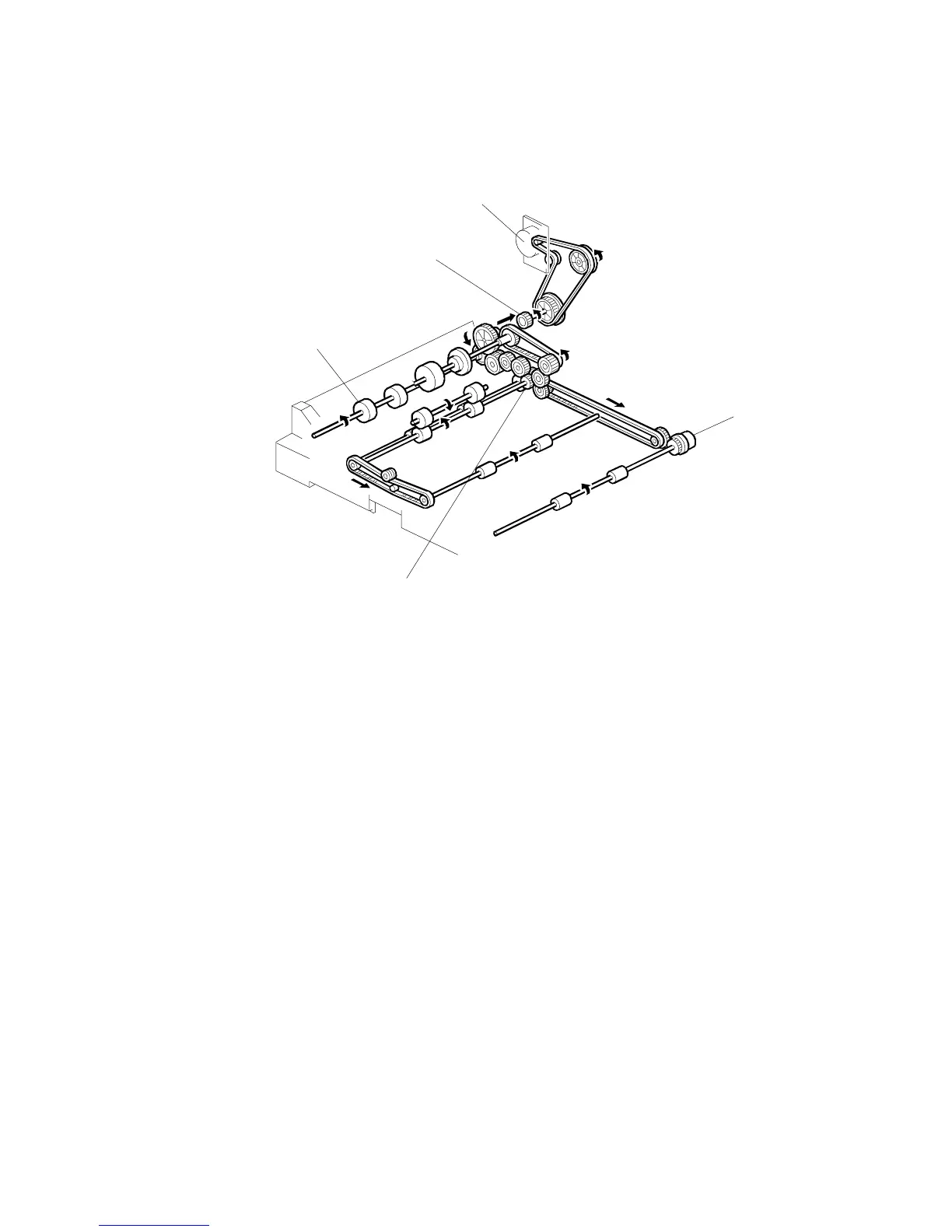

The duplex drive gear [A] transmits drive from the fusing/duplex drive motor [B] to
the duplex unit.
The duplex transport clutch [C] transmits this drive to the duplex transport section,
and the duplex feed clutch [D] transmits it to the duplex paper feed-out section.
The inverter exit roller [E] is driven by the gear [A], and this roller always turns
while the fusing/duplex drive motor is on.
A229D528.WMF
[A]
[B]
[C]
[D]
[E]
