Ricoh A229 - Jogger Hp Sensor

PAPER EXIT/DUPLEX UNIT
A229 5-98 SM
5.10.7 JOGGER HP SENSOR
1. Open the front door.
2. Pull out the duplex unit.
3. Remove the duplex unit. (See Duplex Transport/Feed Clutch Removal.)
4. Remove the duplex connector bracket [A] (2 screws).
5. Remove the jogger HP sensor [B] (1 connector).

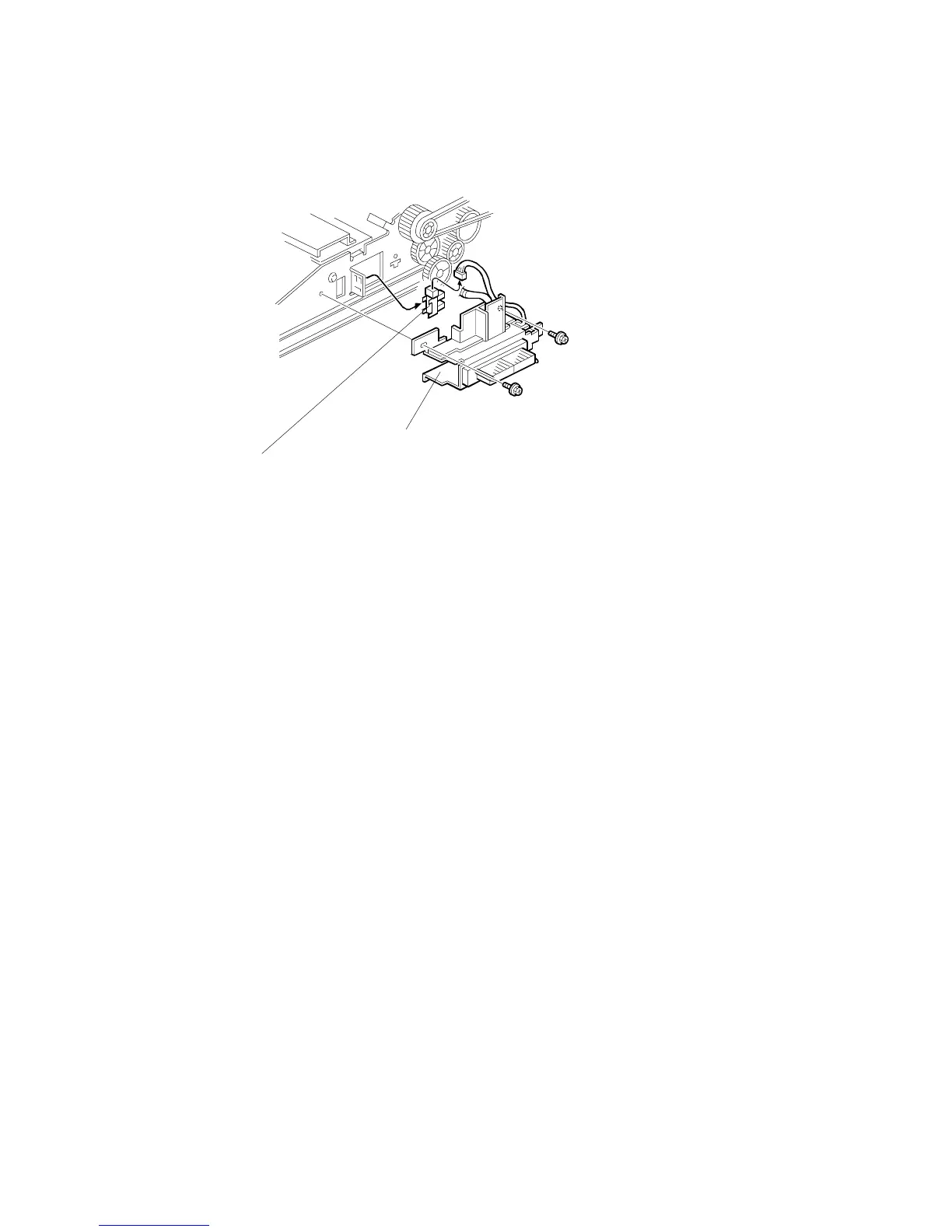

A229R680.WMF
[A]
[B]
