2.10 PAPER EXIT/DUPLEX
2.10.1 OVERVIEW
The printed page from the fusing unit goes either straight through to the output tray
or finisher, or downward through to the inverter or duplex unit, depending on the
position of the junction gate [A].
If the page is fed out directly, it arrives on the tray face-up. If the user selected
face-down output, the page goes to the inverter [B] before being fed out.
If the user selects duplex mode, the page is directed to the duplex tray [C] after
inverting, and back to the machine for printing the second side.

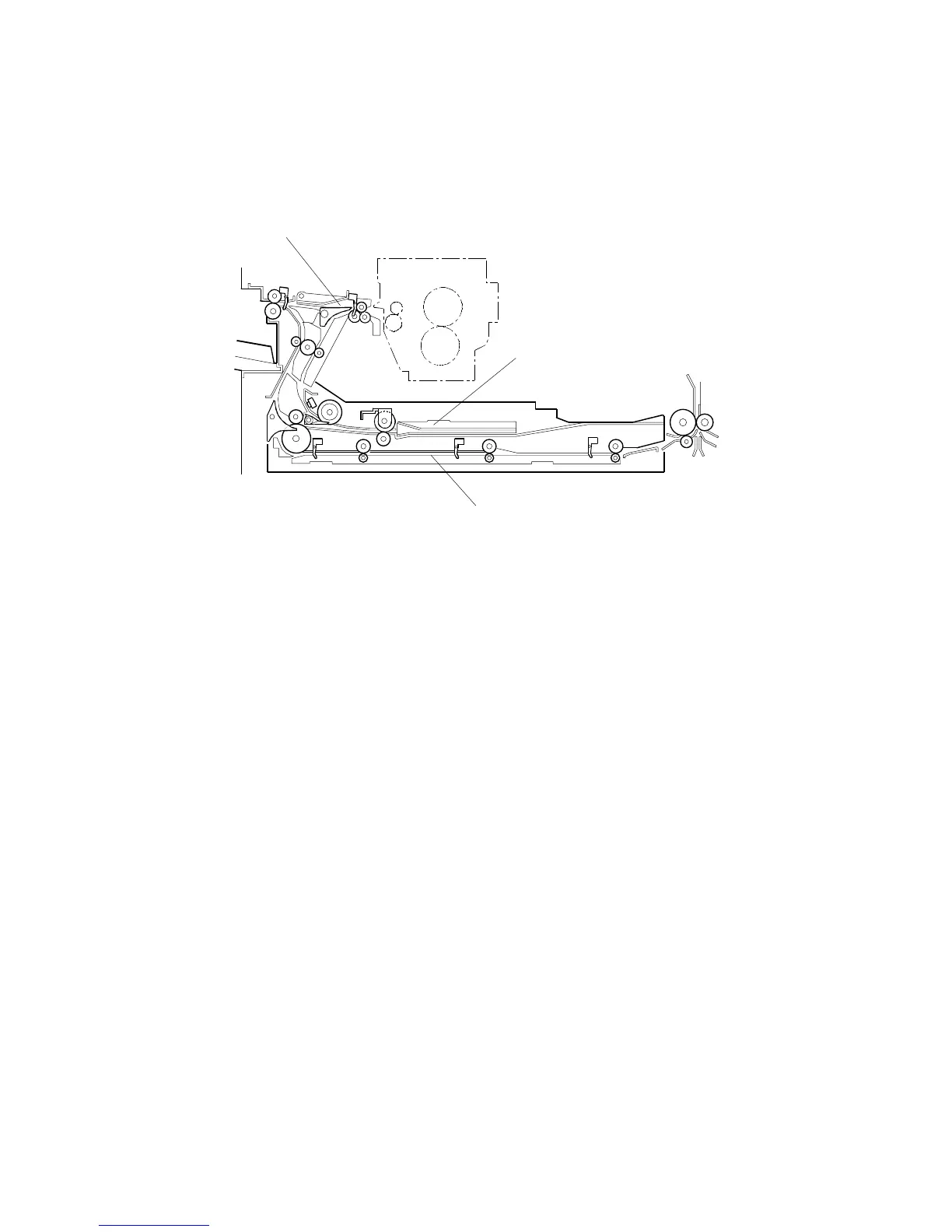

A229D529.WMF
