2.8.6 VERTICAL TRANSPORT MECHANISM

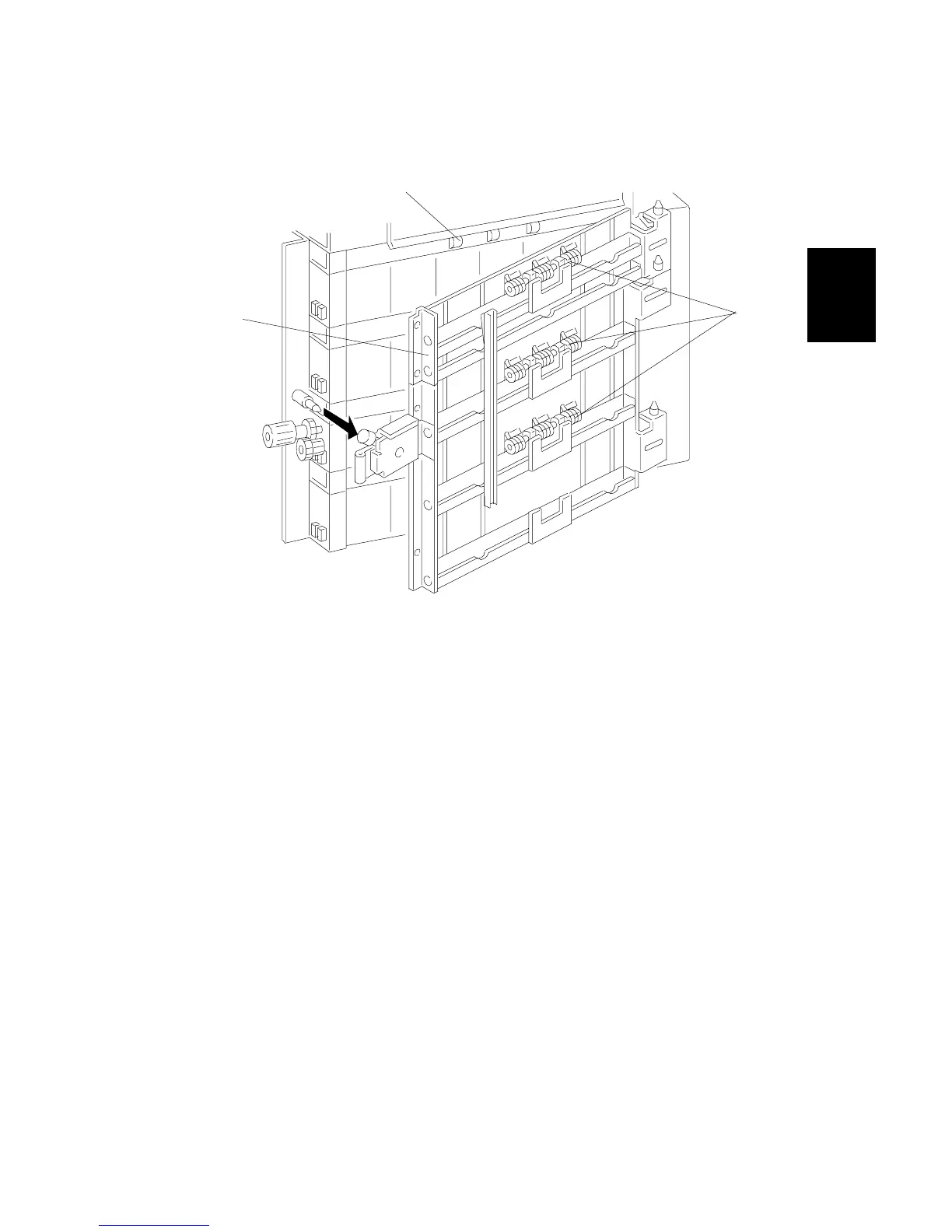

The vertical transport rollers [A] in each feed unit are all driven by the paper feed
motor. The vertical transport rollers and the idle vertical transport rollers [B], on the
inner and outer vertical guide plates, transport the paper up from each feed unit
towards the relay and registration rollers.
The vertical transport guides [C] can be opened to remove jammed paper in the
vertical transport area.
A229D617.WMF
[A]
[B]
[C]
