Ricoh A229 - Paper Size Detection - Tray 2

PAPER FEED
2-100
A229 SM
2.8.9 PAPER SIZE DETECTION – TRAY 2
Paper size
L: Lengthwise
S: Sideways
SW
Actuated – 0
De-actuated – 1
A4/A3
Version
LT/DLT
Version
00111 A3-L 11 x 17-L
00011 8
1/4
x 13 8
1/2
x 14-L
10011 A4-L 8
1/2
x 11-L
01001 A4-S 8
1/2
x 11-S
00100 81/2 x 13 5
1/2
x 8
1/2
-S
00010 – 8 x 10-S
00001 A5-S 8 x 10-L
10000 8 k-L (Taiwan version only) 8 x 13-L
11000 16 k-L (Taiwan version only) 10 x 14-L
11100 16 k-S (Taiwan version only) 11 x 15-L
11110 * *
For the first and the third feed trays, the paper size has to be stored with a UP
mode.

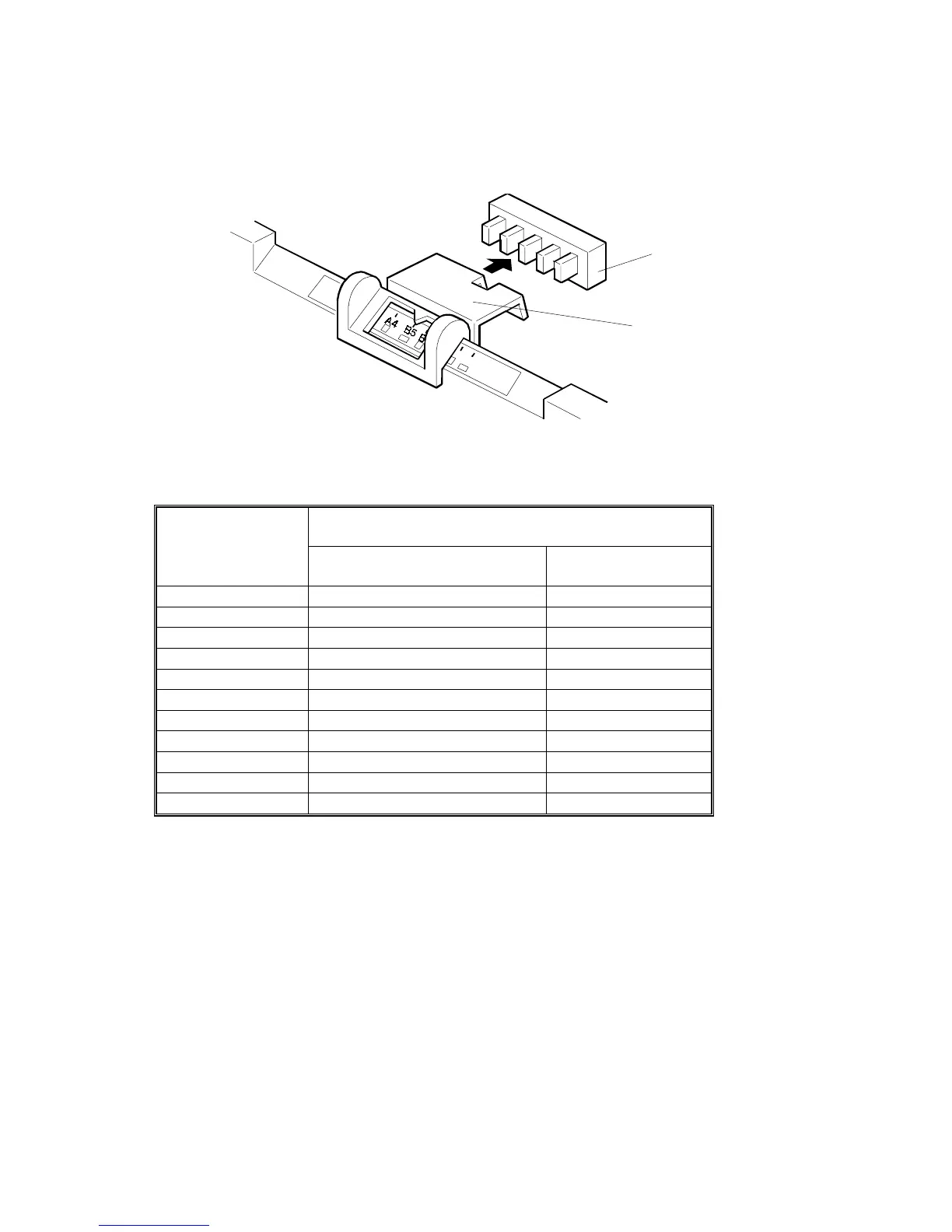

For the second feed tray (universal tray), the paper size switch [A] detects the
paper size. The paper size switch contains five microswitches. The paper size
switch is actuated by an actuator plate [B] at the rear of the tray. Each paper size
has its own unique combination as shown in the table and the CPU determines the
paper size by the combination.
Using the asterisk setting (*), a wider range of paper sizes can be used, but the
size has to be entered with a UP mode.
A229D614.WMF
[A]
[B]
