PAPER FEED
2-97
Detailed
Descriptions
SM A229
Registration Drive Mechanism

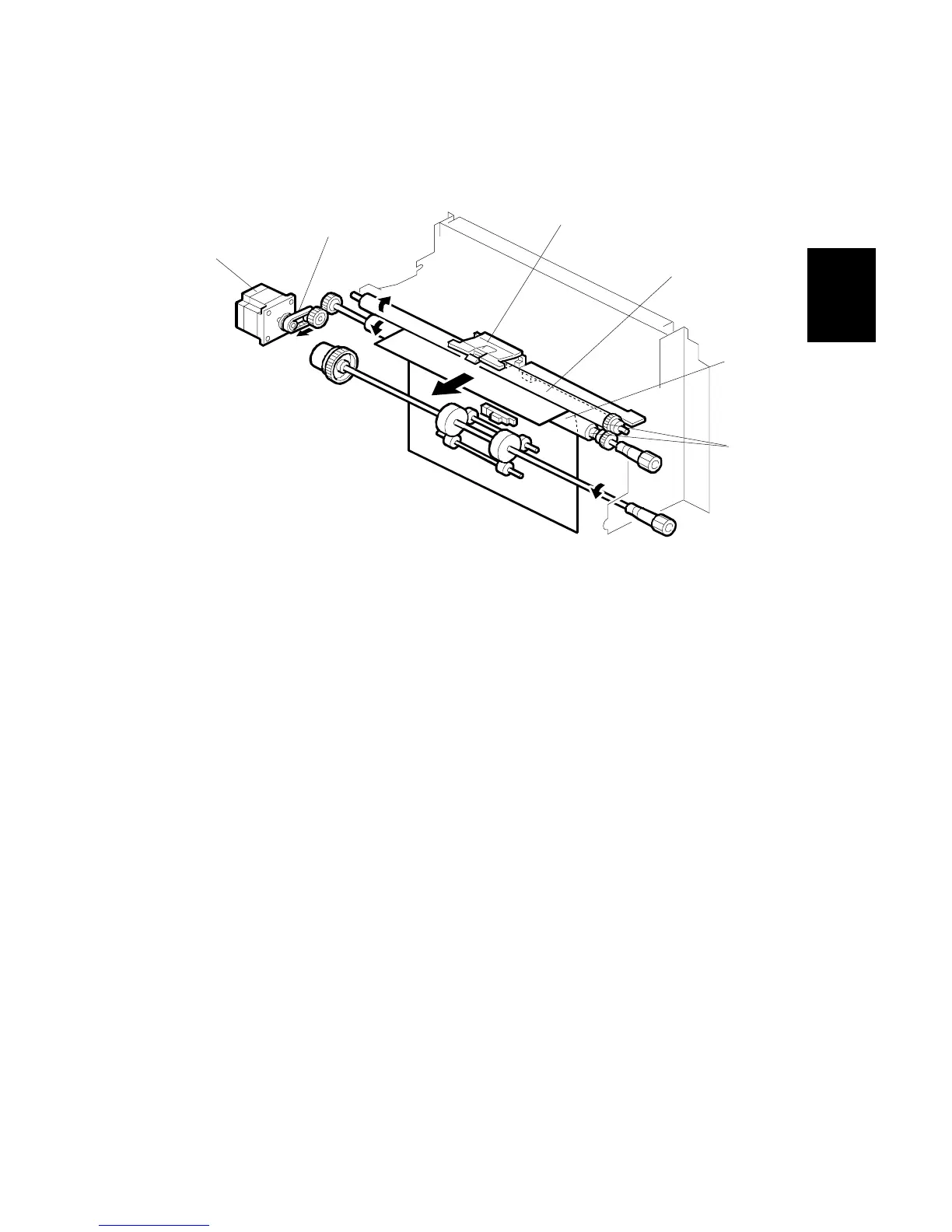

The registration motor [A] drives the lower registration roller [B] through a timing
belt [C] and some gears. Drive is transmitted to the upper registration roller [D] via
two gears [E] at the front.
There is a paper dust remover [F] at the center of the upper registration roller [D].
This is in line with the feed rollers, where most paper dust is generated. Clean the
dust remover every PM visit.
A229D596.WMF
[C]
[A]
[B]
[D]
[E]
[F]
