LASER EXPOSURE
2-44
A229 SM
2.4.2 OPTICAL PATH

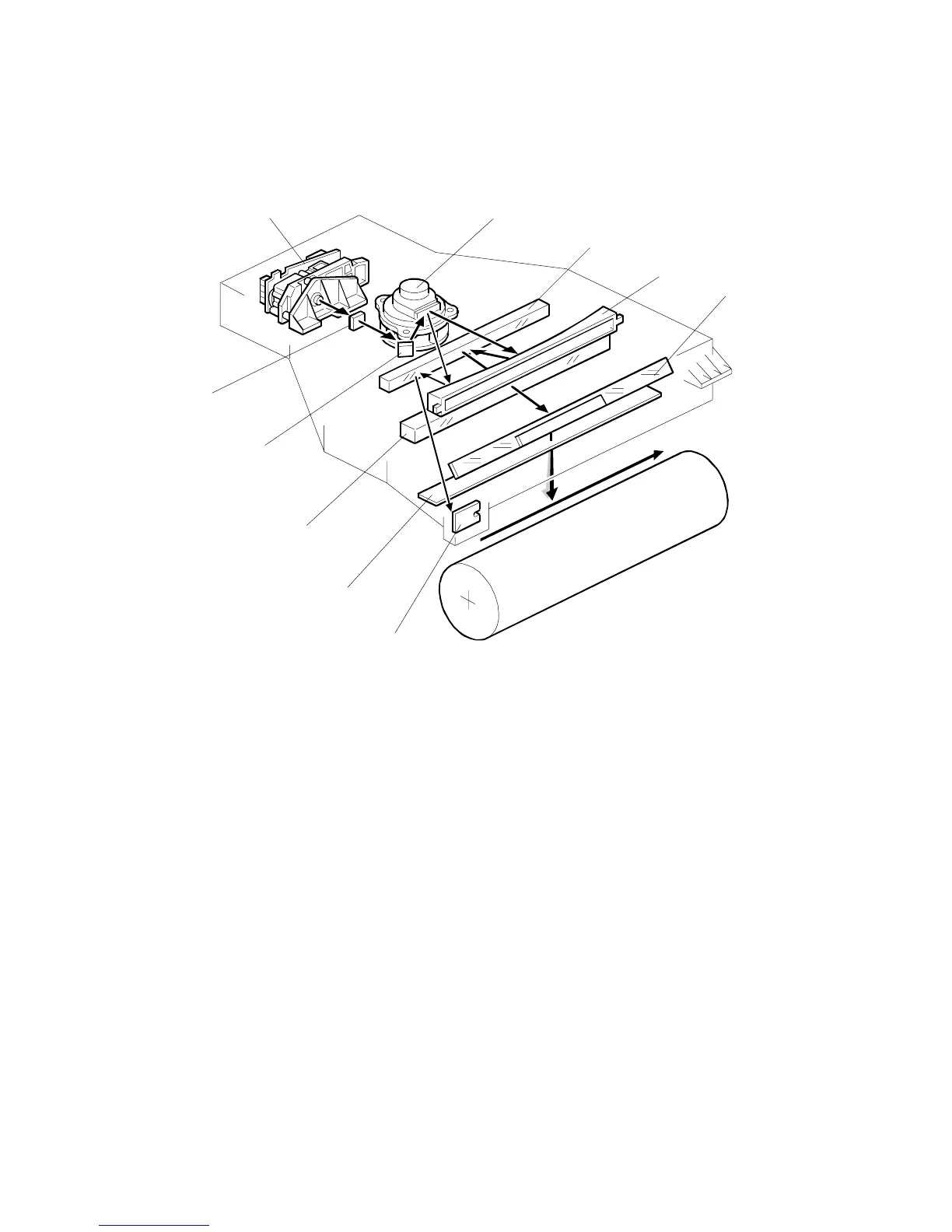

The output path from the laser diode to the drum is shown above.
The LD unit [A] outputs two laser beams to the polygonal mirror [B] (six mirrors)
through the cylindrical lens [C] and the 1st mirror [D].
Each surface of the polygon mirror reflects two full main scan lines. The laser
beams go to the F-theta mirror [E], mirror [F], BTL (barrel toroidal lens) [G], and
mirror [H]. Then these laser beams go to the drum through the toner shield glass
[I].
The laser synchronizing detector [J] determines the main scan starting position.
