ROLLER REPLACEMENT
SM 8-13 A229
Large
Capacity
Tray A698
4.2 ROLLER REPLACEMENT

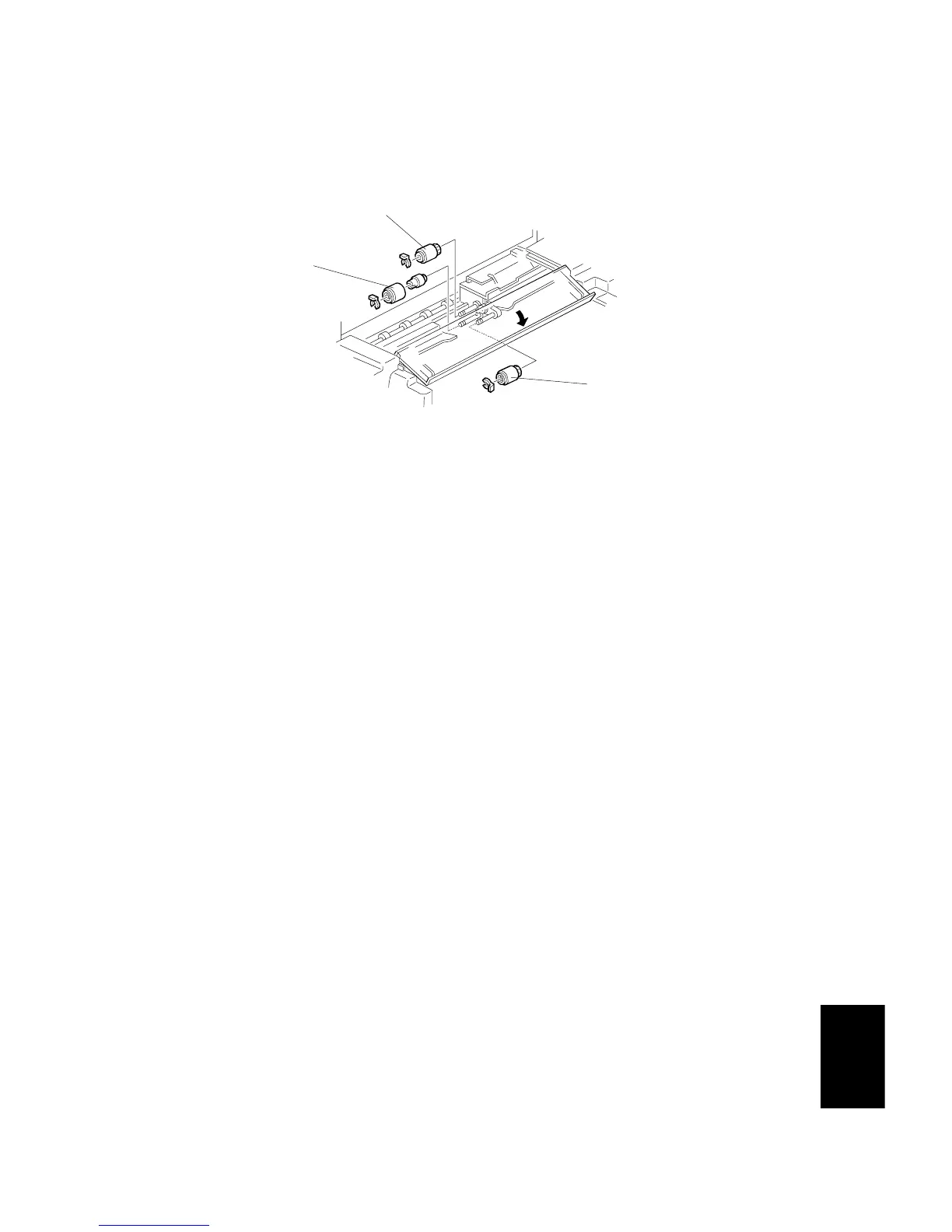

4.2.1 PAPER FEED, SEPARATION, AND PICK-UP ROLLERS
1. Push the down switch to lower the tray bottom plate.
2. Open the feed unit cover.
Pick-up Roller
3. Replace the pick-up roller [A] (1 snap ring).
Paper Feed Roller
3. Replace the paper feed roller [B] (1 snap ring).
Separation Roller
3. Replace the separation roller [C] (1 snap ring).
A698R102.WMF
[A]
[B]
[C]
