STAPLER REMOVAL

SM 7-31 A229

Finisher

A697

4.5 STAPLER REMOVAL

1. Open the front door and pull out the jogger unit.

2. Move the stapler to the front.

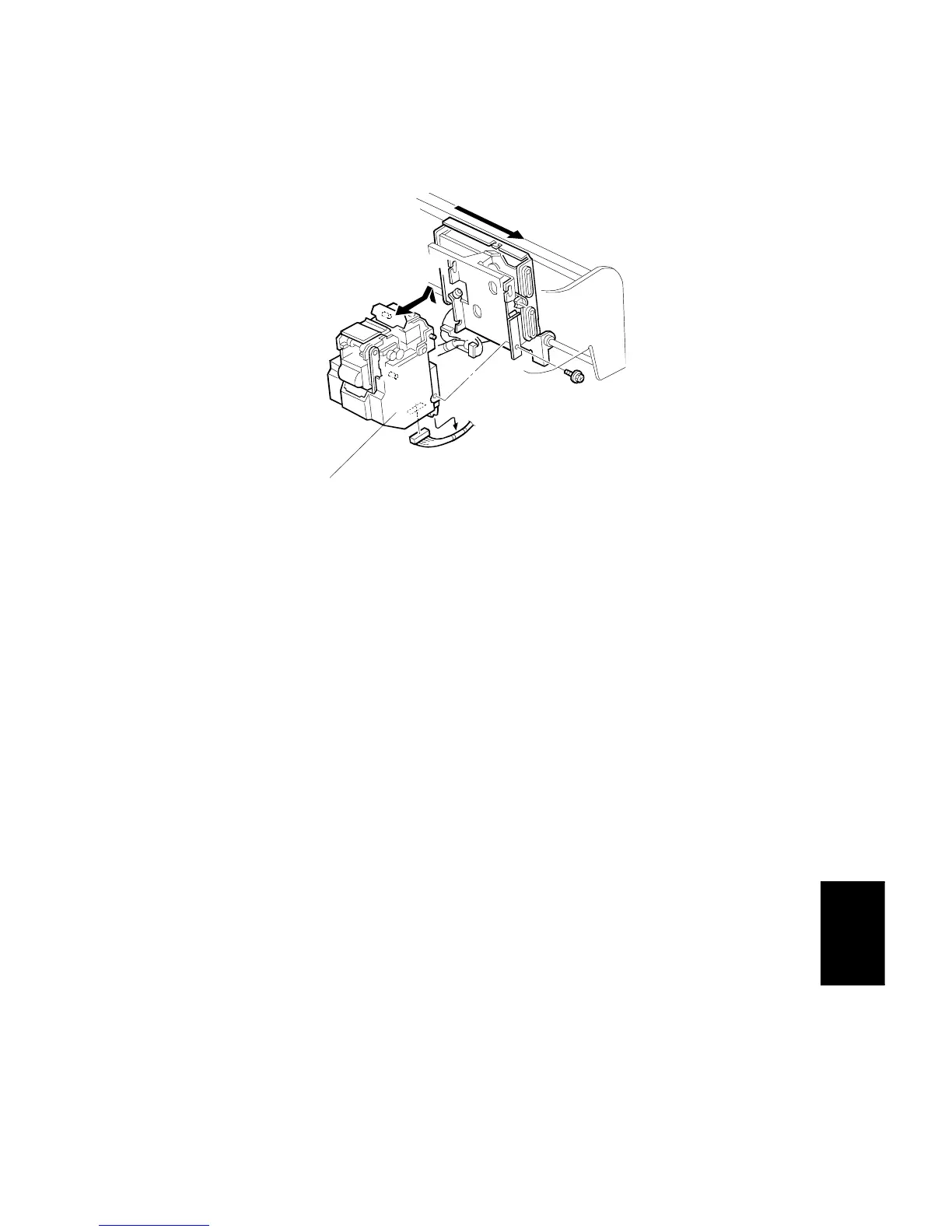

3. Remove the stapler [A] (1 screw, 1 connector).

A697R509.WMF

[A]
