PUNCH POSITION ADJUSTMENT
A229 7-32 SM
4.6 PUNCH POSITION ADJUSTMENT
Right to left
This position is adjusted by SP modes.

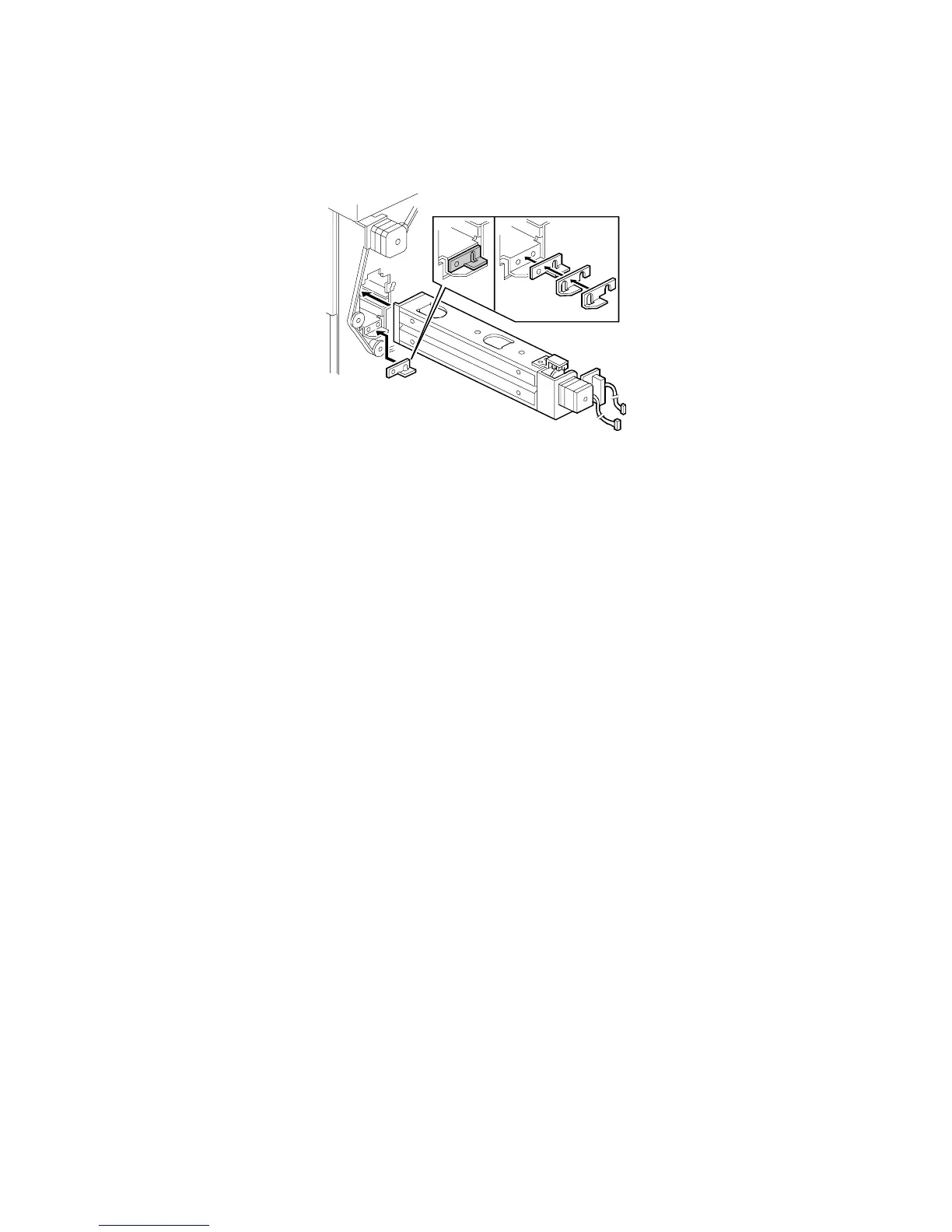

Front to rear
The optional punch units have the following 3 spacers as accessories.
1 mm thickness: 2 pcs
2 mm thickness: 1 pc
The punch position can be adjusted by up to 4 mm by combinations of the 3
spacers.
A697R508.WMF
