5.9.4 HOT ROLLER REPLACEMENT

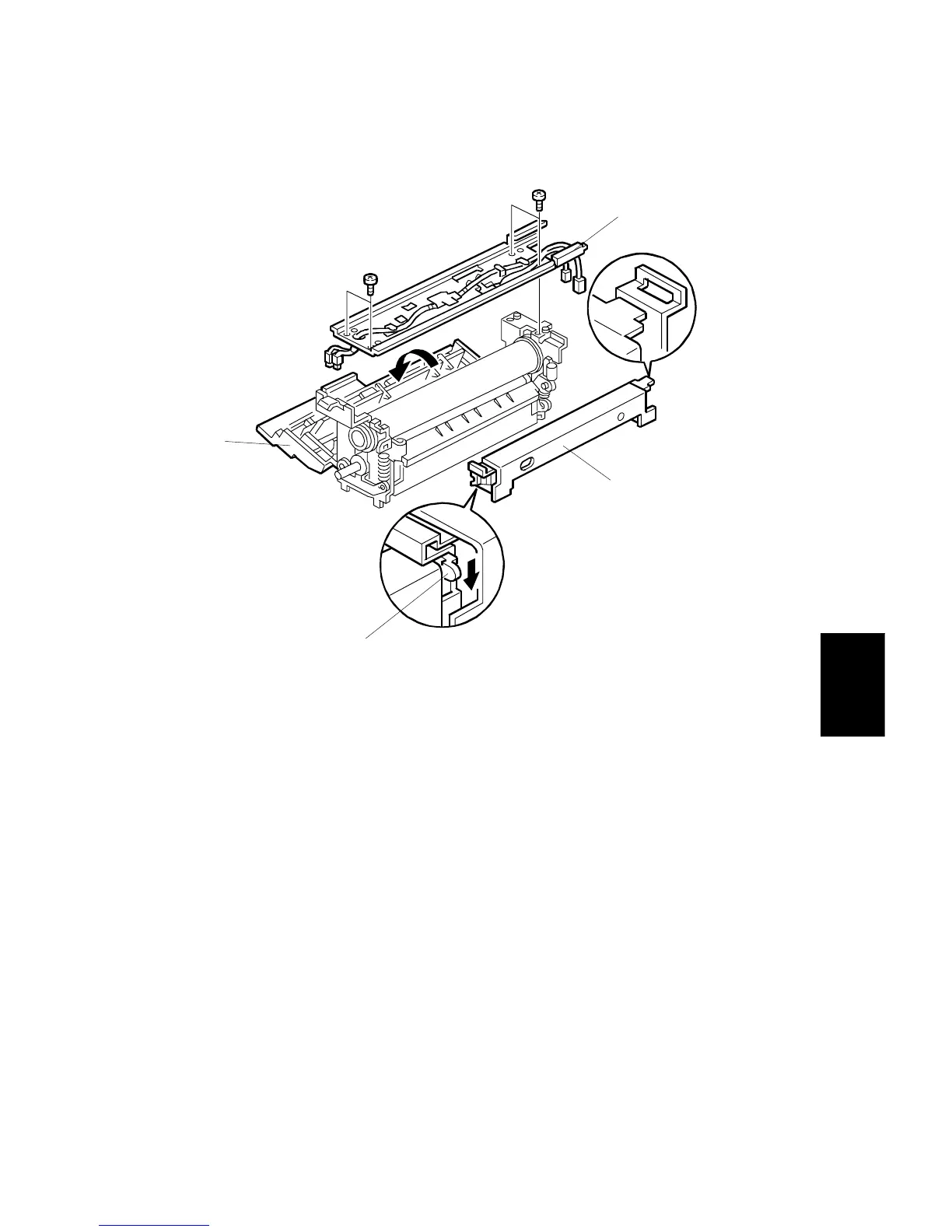

1. Remove the fusing lamps. (Refer to Fusing Lamp Replacement.)
2. Lower the fusing exit assembly [A].
3. Remove the upper stay [B] (4 screws).
4. Lower the lever [C] and remove the oil supply unit [D].
A229R507.WMF
[A]
[B]
[D]
[C]
