DRIVE LAYOUT
SM 7-7 A229
Finisher
A697

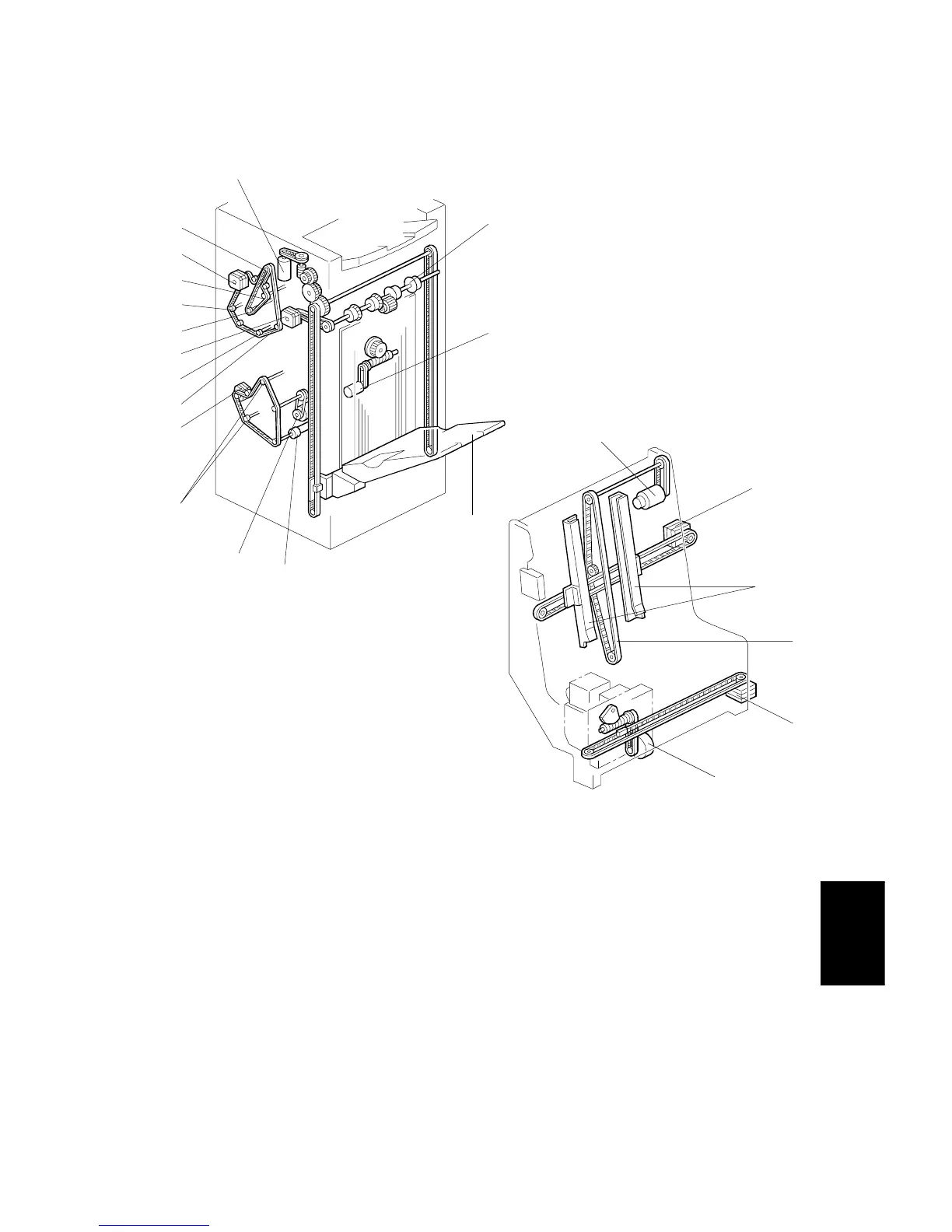

1.5 DRIVE LAYOUT
1. Shift Tray Exit Roller
2. Shift Motor
3. Shift Tray
4. Alignment Brush Roller
5. Positioning Roller
6. Lower Transport Rollers 2 and 3
7. Lower Transport Motor
8. Middle Transport Roller
9. Lower Transport Roller 1
10. Shift Tray Exit Motor
11. 2nd Entrance Roller
12. 1st Entrance Roller
13. Upper Transport Roller
14. Upper Transport Motor
15. Upper Tray Exit Roller
16. Shift Tray Lift Motor
17. Stack Feed-out Motor
18. Jogger Motor
19. Jogger Fence
20. Stack Feed-out Belt
21. Stapler Motor
22. Stapler Rotation Motor
A697D500.WMF
A697D503.WMF
19
18
17
20
21
22
4
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
