Ricoh A229 - Shift Tray Exit Sensor

SENSOR REPLACEMNT
A229 7-28 SM
4.4.3 SHIFT TRAY EXIT SENSOR
1. Remove the rear cover.
2. Remove the upper left cover.
3. Remove the upper cover.

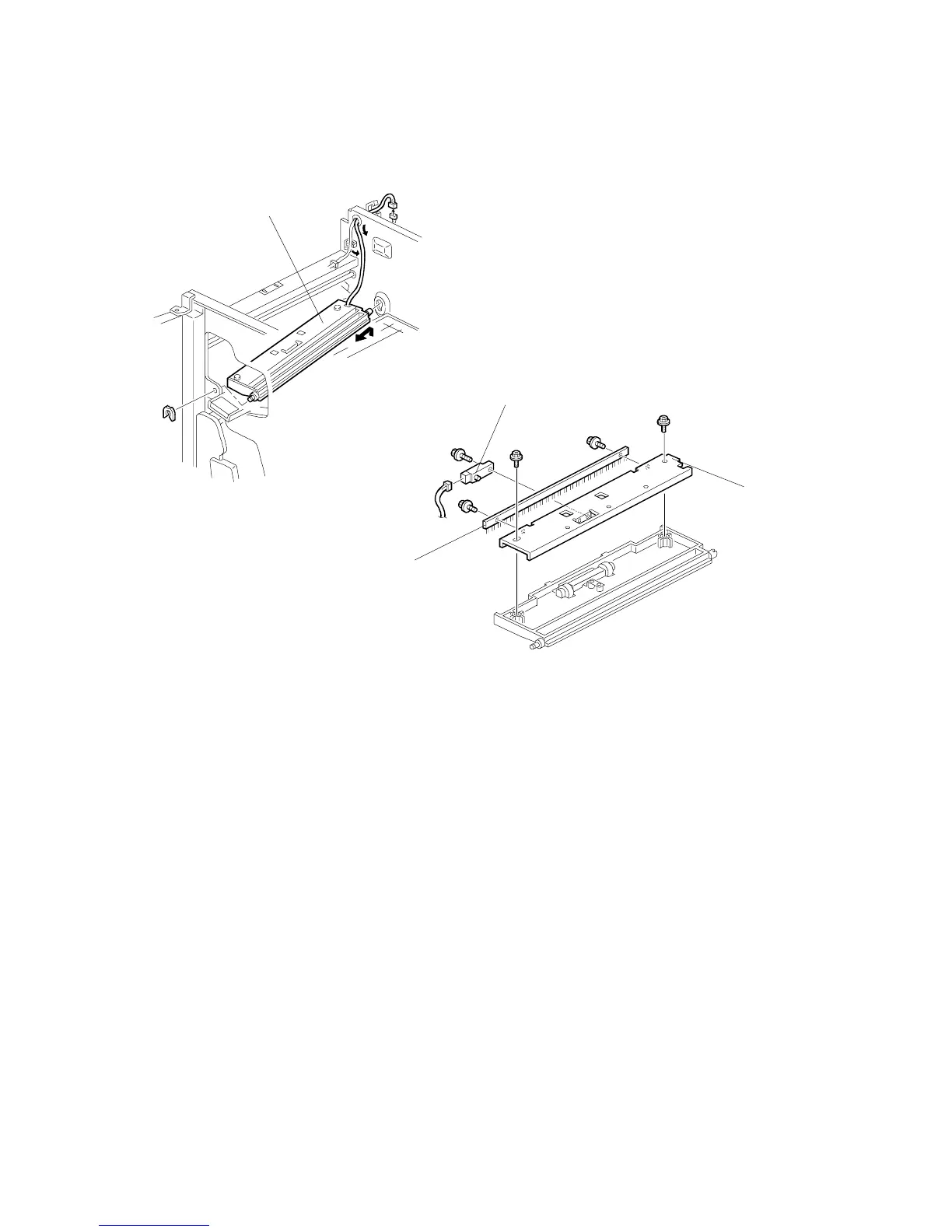

4. Open the front door and remove the upper exit guide [A] (1 plastic clip).
5. Remove the guide stay [B] (2 screws).
6. Remove the discharge brush [C] (2 screws).
7. Replace the shift tray exit sensor [D] (1 screw, 1 connector).
A697R505.WMF
A697R506.WMF
[D]
[B]
[A]
[C]
