Ricoh A229 - Original Inversion Mechanism

DOCUMENT FEEDER
2-10
A229 SM
Original Inversion Mechanism

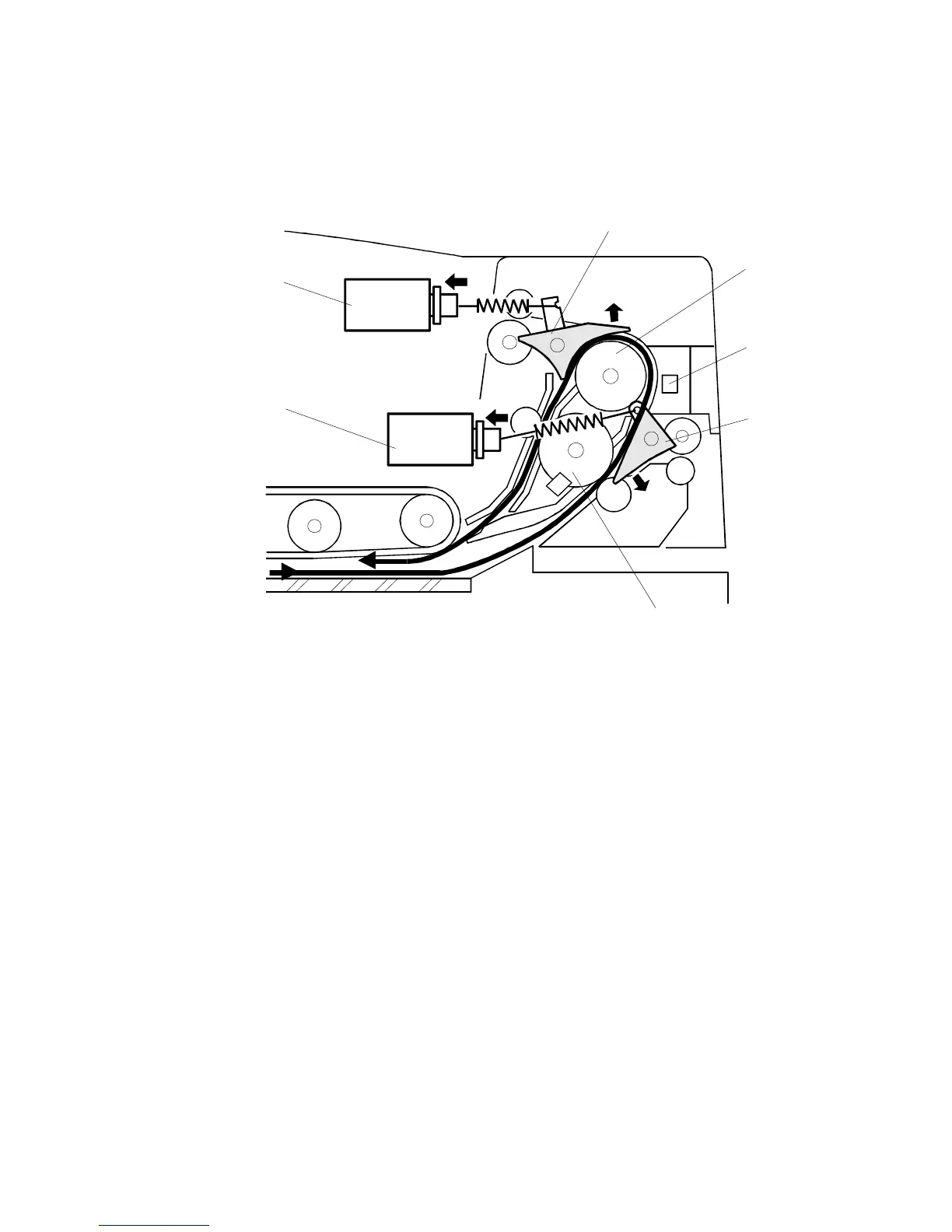

When the DF receives the original invert signal from the copier, the transport belt
motor, feed-out motor, exit gate solenoid [A], and inverter gate solenoid [B] turn on
and the original is fed back to the exposure glass through the inverter roller [C], exit
gate [D], inverter guide roller [E], inverter gate [F], and inverter roller.
The transport belt motor turns in reverse shortly after the leading edge of the
original turns on the inverter sensor [G], and feeds the original to the left scale.
A806D113.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
