MECHANICAL COMPONENT LAYOUT
1-8
A229 SM

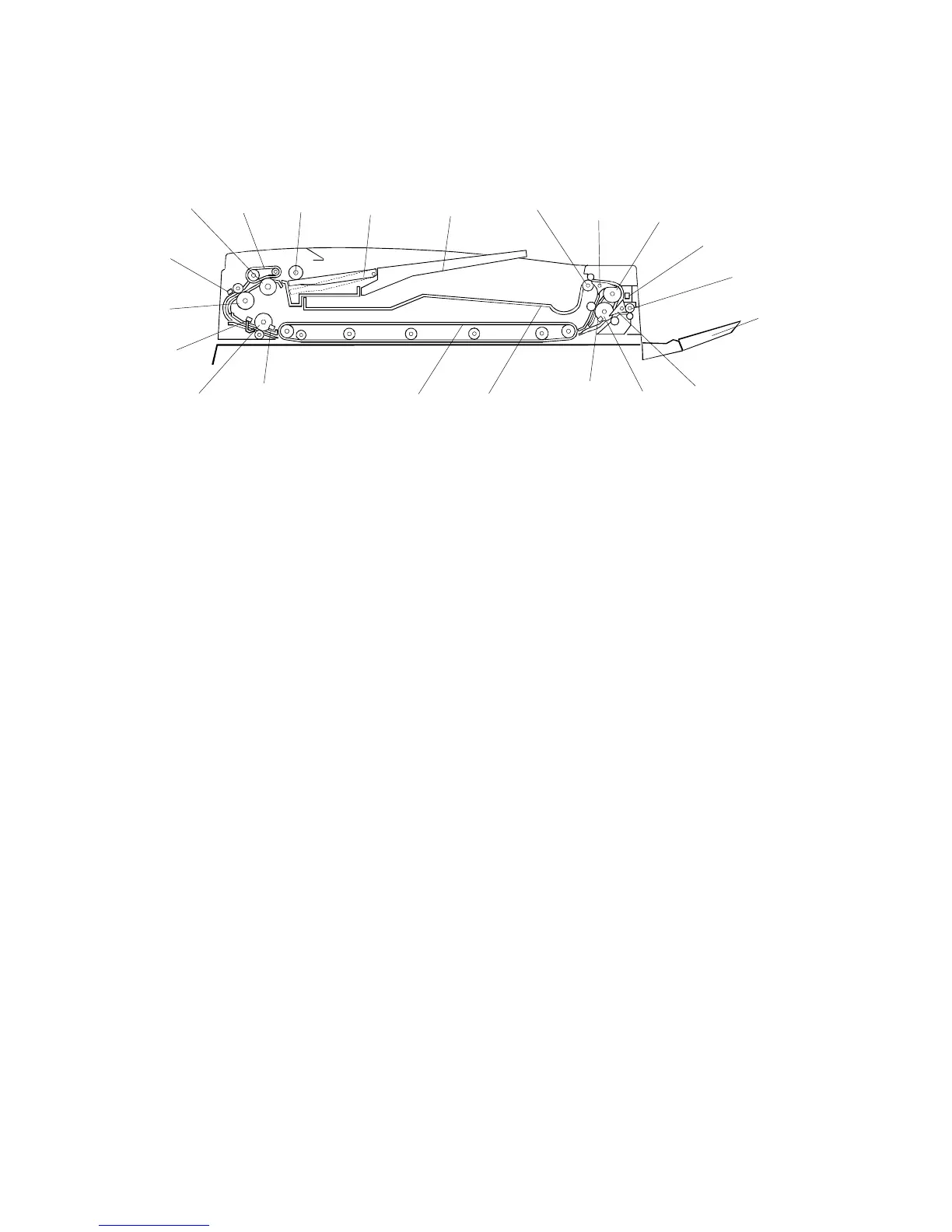

1.3.2 ADF
1. Separation Roller
2. Feed Belt
3. Pick-up Roller
4. Bottom Plate
5. Original Tray
6. Upper Tray Exit Roller
7. Inverter Gate
8. Inverter Guide Roller
9. Inverter Sensor
10. Right Tray Exit Roller
11. Right Exit Tray
12. Exit Gate
13. Inverter Roller
14. Exit Sensor
15. Upper Exit Tray
16. Transport Belt
17. Registration Sensor
18. Lower Transport Roller
19. Width Sensor
20. Upper Transport Roller
21. Entrance Sensor
A229V506.WMF
1
6
8
9
10
11
12
13
15
16
18
19
20
21
2
3
4
17
14
7
5
