Ricoh A229 - Entrance and Stapler Tray Entrance Sensor; Entrance Sensor; Stapler Tray Entrance Sensor

SENSOR REPLACEMNT
SM 7-29 A229
Finisher
A697
4.4.4 ENTRANCE AND STAPLER TRAY ENTRANCE SENSOR
1. Remove the finisher from the copier.
Entrance Sensor
2. Remove the sensor bracket [A] (1 screw).
3. Replace the entrance sensor [B] (1 screw, 1 connector).
Stapler Tray Entrance Sensor
2. Remove the sensor bracket [C] (1 screw).
3. Replace the stapler tray entrance sensor [D] (1 screw, 1 connector).

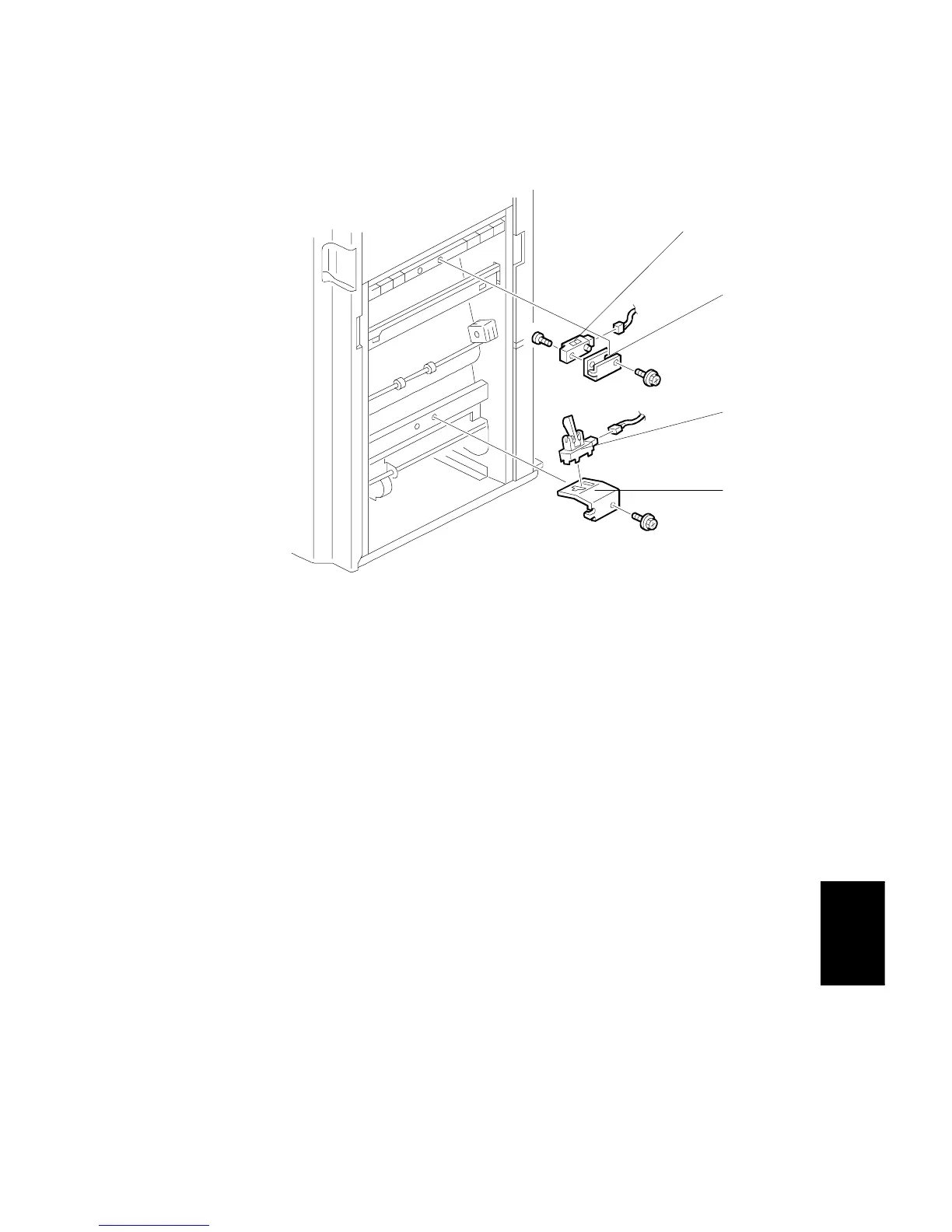

A697R507.WMF
[B]
[A]
[D]
[C]
