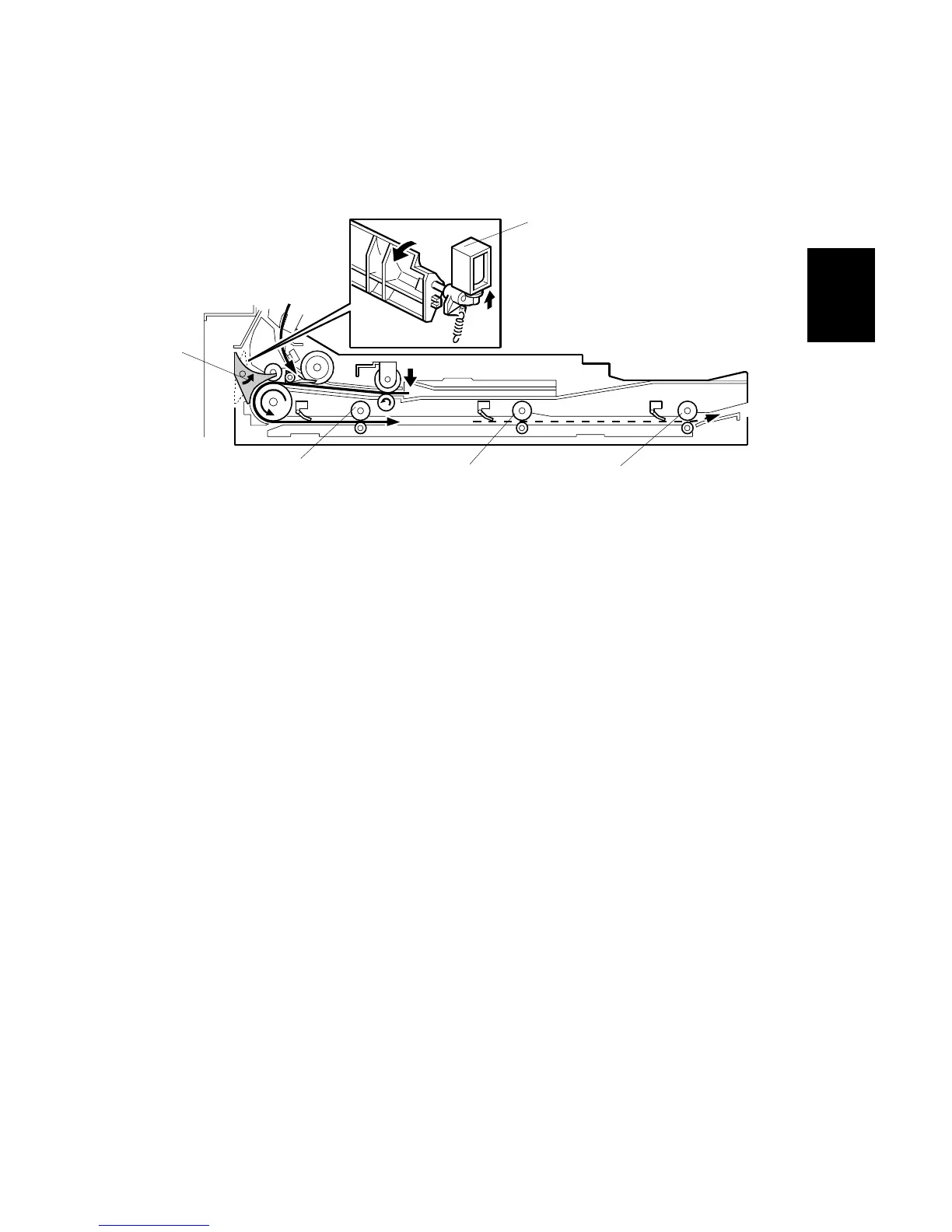

2.10.5 DUPLEX TRAY FEED MECHANISM
In duplex mode, after the paper leaves the inverter, the duplex junction gate
solenoid [A] switches the junction gate [B] to direct the paper to the duplex tray.
The paper is fed through the duplex tray by duplex transport rollers 1 [C] and 2 [D],
and the duplex feed roller [E].
If duplex mode is not selected, the solenoid does not switch the junction gate, and
the paper goes to the output tray or finisher face down.
A229D544.WMF
[A]
[B]
[C]
[D]
[E]
