PAPER FEED
2-91
Detailed
Descriptions
SM A229
2.8.5 PICK-UP AND FEED MECHANISM – TRAYS 1 TO 3
Overview

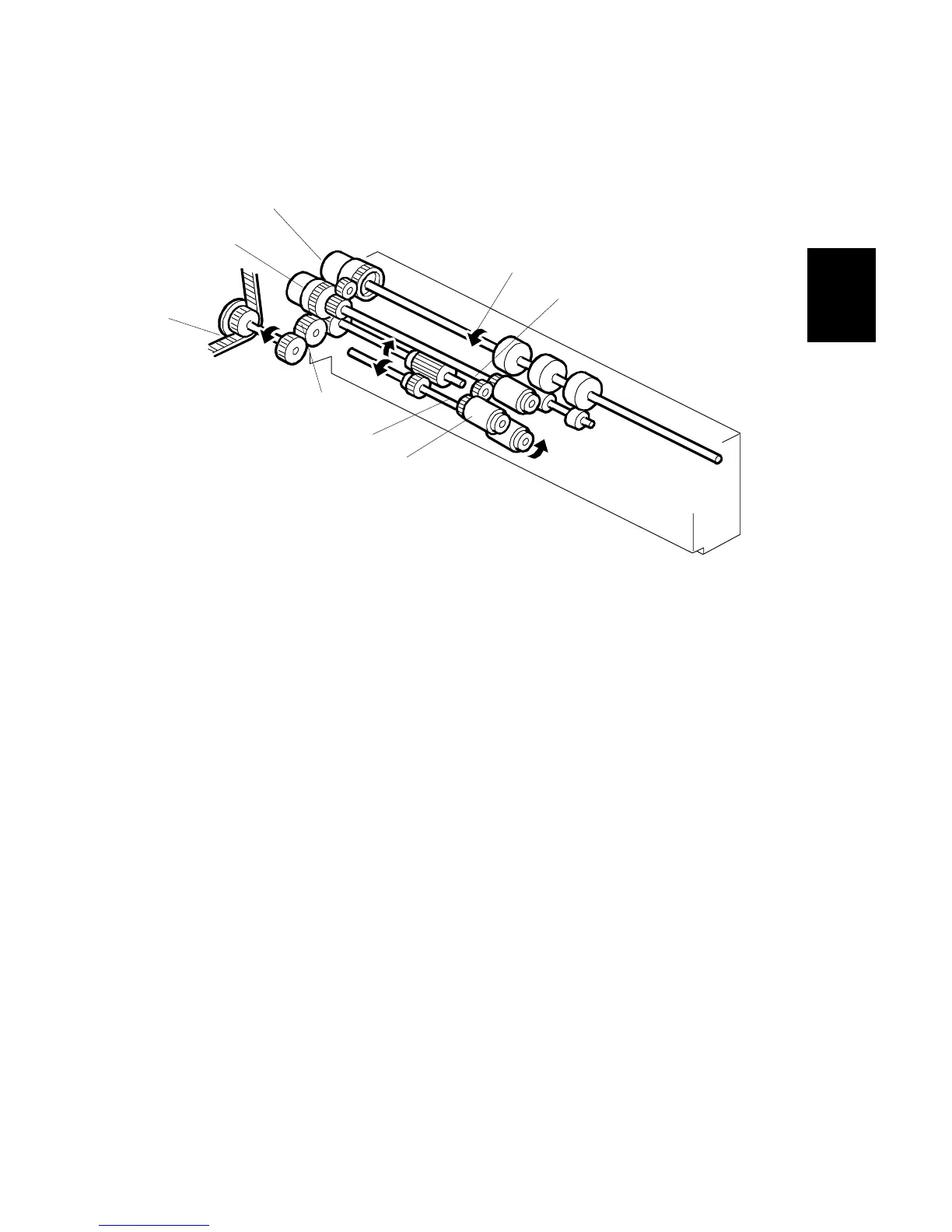

Drive from the paper feed motor is transmitted to the gear [A] in the paper feed unit
via the timing belt [B].
Then the gear [A] transmits the drive to the pick-up [C], paper feed [D] and
separation [E] rollers via gears and the paper feed clutch [F].
The gear [A] also transmits the drive to the vertical transport roller [G] via gears
and the vertical relay clutch [H].
A229D598.WMF
[B]
[C]
[D]
[E]
[A]
[F]
[H]
[G]
