Ricoh A229 - Pick-Off Mechanism

DRUM UNIT
2-65
SM A229
Detailed
Descriptions
Pick-off Mechanism

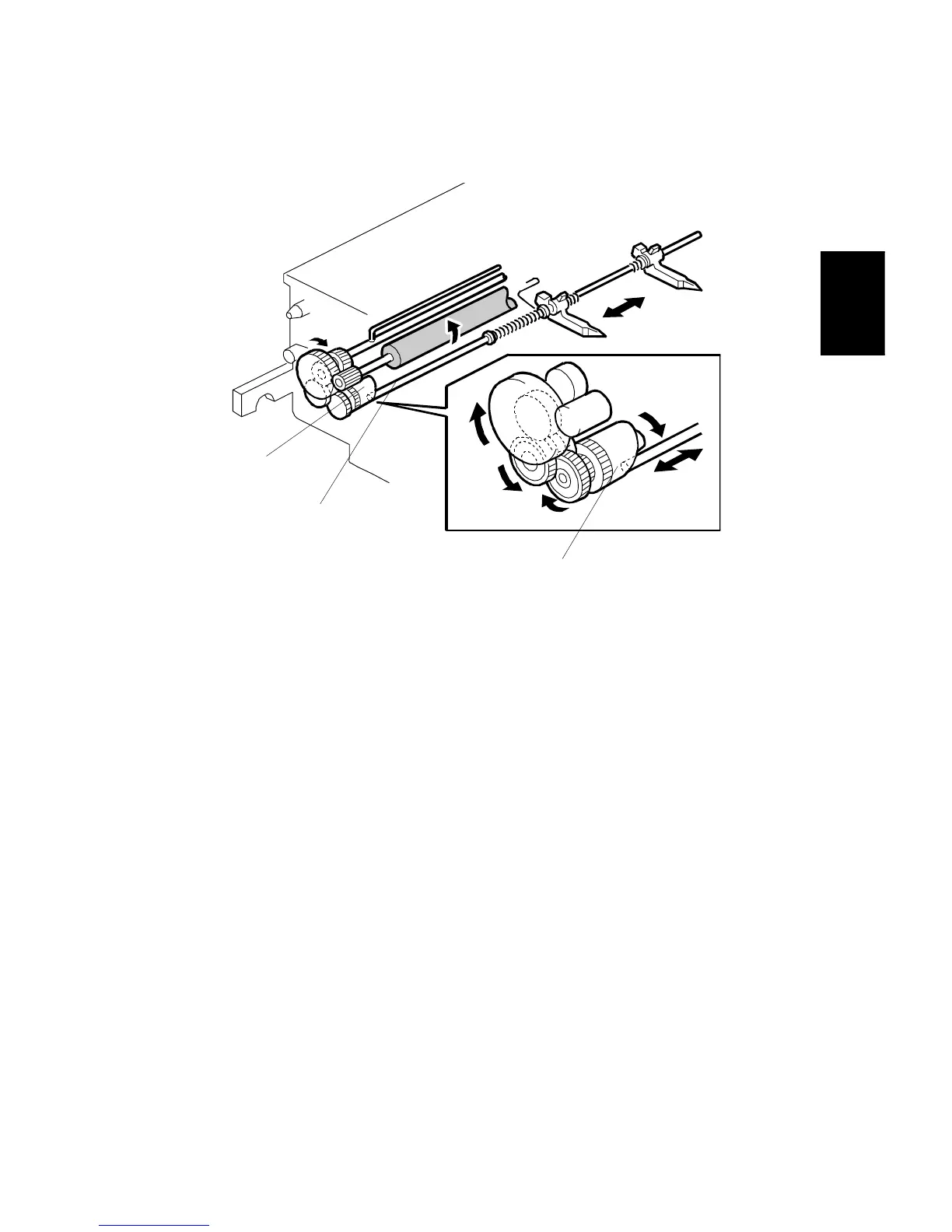

The pick-off pawls are always in contact with the drum surface as a result of light
spring pressure. They move from side to side during the copy cycle to prevent
drum wear at any particular location. This movement is made via a shaft [A] and an
a cam [B].
A229D559.WMF
[A]
[B]
[B]
