4.2.3 MAIN CONTROL BOARD

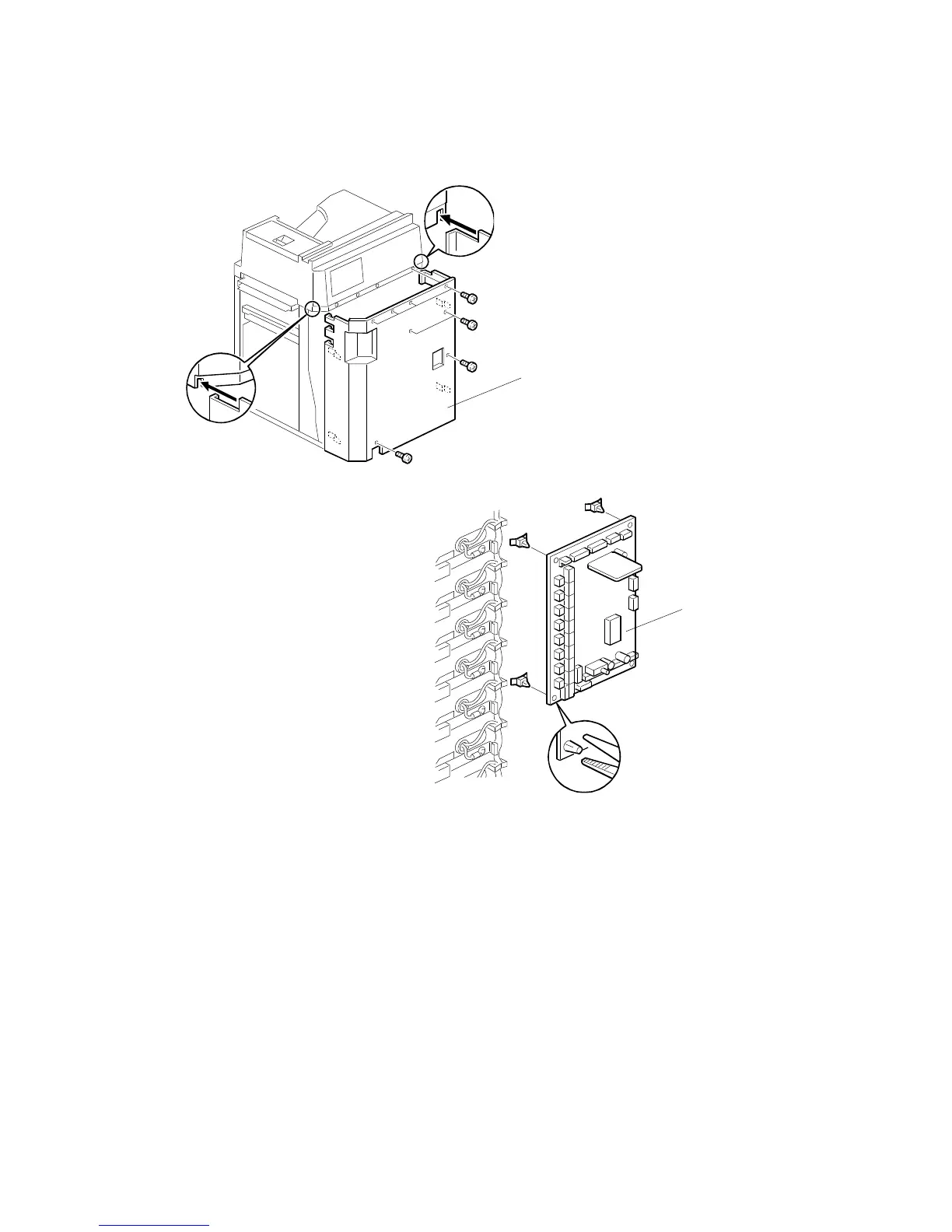

1. Remove the rear cover [A] (8 screws).
2. Remove the main control board [B] (all connectors).
3. After replacing the main control board, perform the tray exit sensor adjustment
procedure (see Tray Exit Sensor Adjustment).
