Ricoh A229 - By-Pass Feed Table Removal

PAPER FEED
SM 5-73 A229
Replacement
and
Adjustmen
t

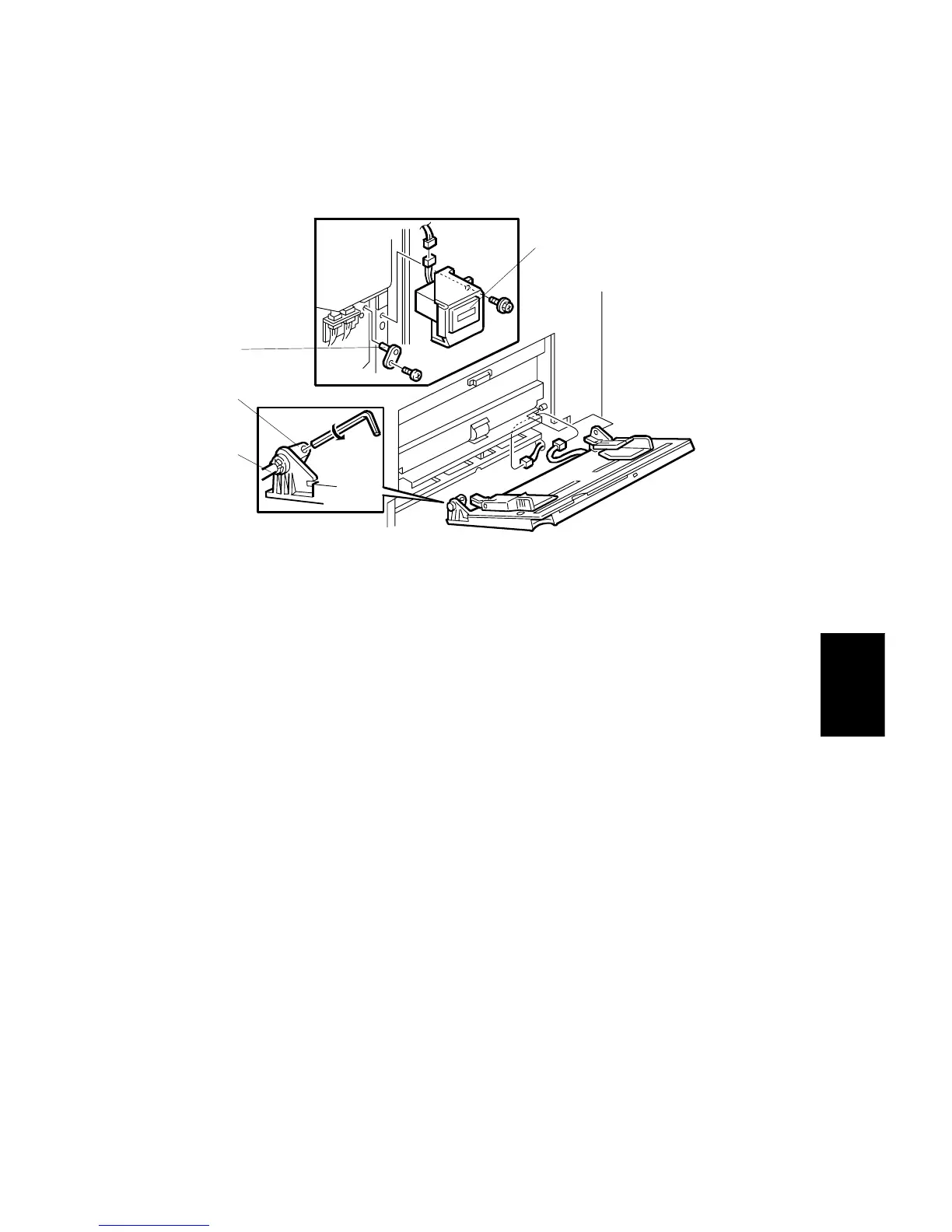

5.8.9 BY-PASS FEED TABLE REMOVAL
1. Remove the right inner cover. (Refer to Right Inner Cover Removal.)
2. Remove the total counter with bracket [A] (1 screw, 1 connector).
3. Loosen the Allen screw [B] on the hinge.
4. Remove the hinge pin [C] (1 screw).
5. Remove the by-pass feed table (1 connector).
A229R610.WMF
[A]
[B]
[C]
[C]
