PAPER POSITION SENSOR REPLACEMENT

A229 8-16 SM

4.5 PAPER POSITION SENSOR REPLACEMENT

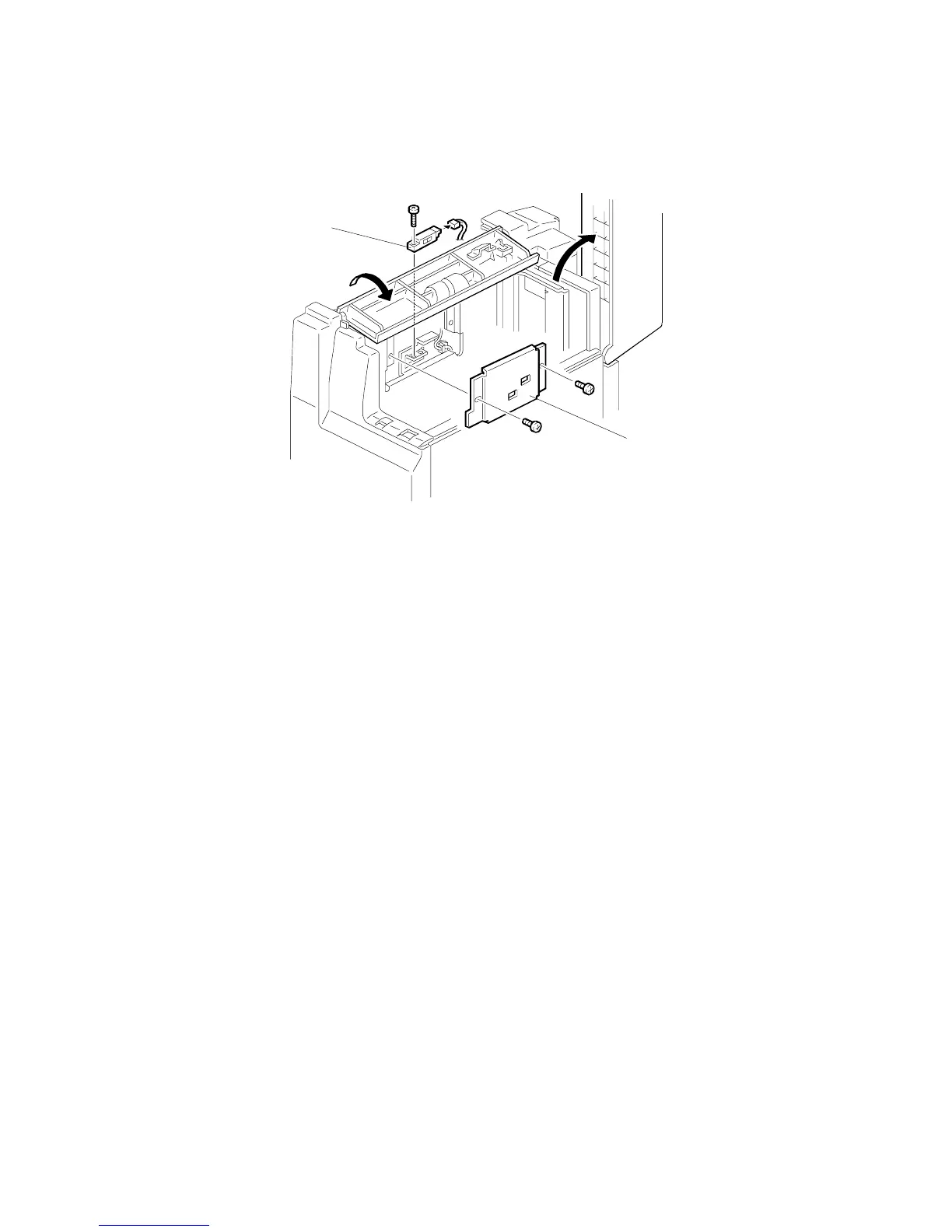

1. Remove the LCT.

2. Open the tray cover and feed unit cover.

3. Remove the sensor cover [A] (2 screws).

4. Replace the paper position sensor [B] (1 screw, 1 connector).

A698R108.WMF

[A]

[B]
