MECHANICAL COMPONENT LAYOUT
SM 7-3 A229
Finisher
A697

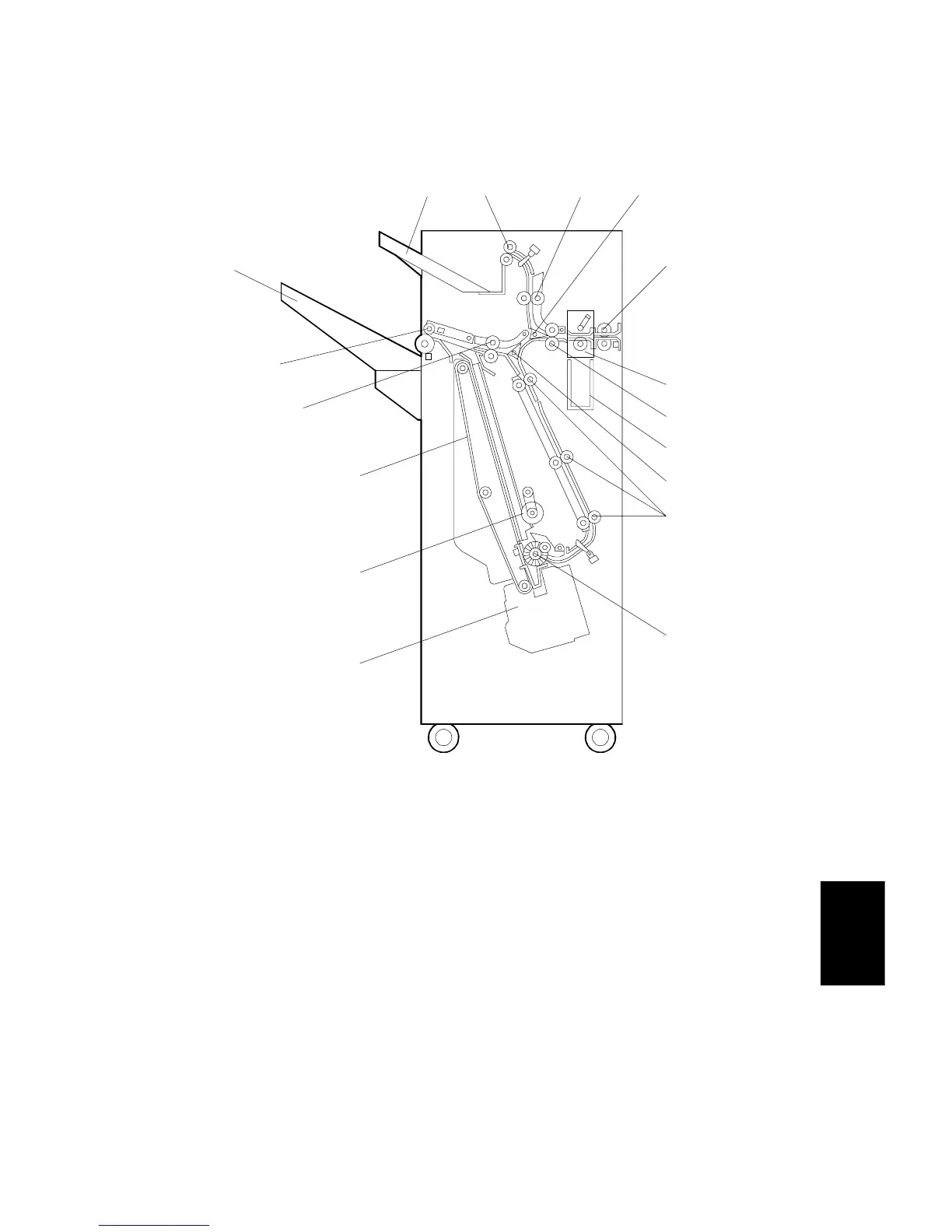

1.2 MECHANICAL COMPONENT LAYOUT
1. Upper Tray
2. Upper Tray Exit Roller
3. Upper Transport Roller
4. Tray Junction Gate
5. 1st Entrance Roller
6. Punch Unit
7. 2nd Entrance Roller
8. Punch Waste Hopper
9. Stapler Junction Gate
10. Lower Transport Rollers
11. Alignment Brush Roller
12. Stapler
13. Positioning Roller
14. Stack Feed-out Belt
15. Middle Transport Roller
16. Shift Tray Exit Roller
17. Shift Tray
A697V500.WMF
1
5
2 3 4
6
7
8
9
10
11
12
13
14
15
16
17
To Next Page
