Ricoh A229 - Scanner H.p Sensor

SCANNER UNIT
SM 5-19 A229
Replacement
and
Adjustmen
t
5.3.6 SCANNER H.P SENSOR
1. Remove the operation panel. (See Operation Panel.)
2. Open the front door and swing out the toner bottle.

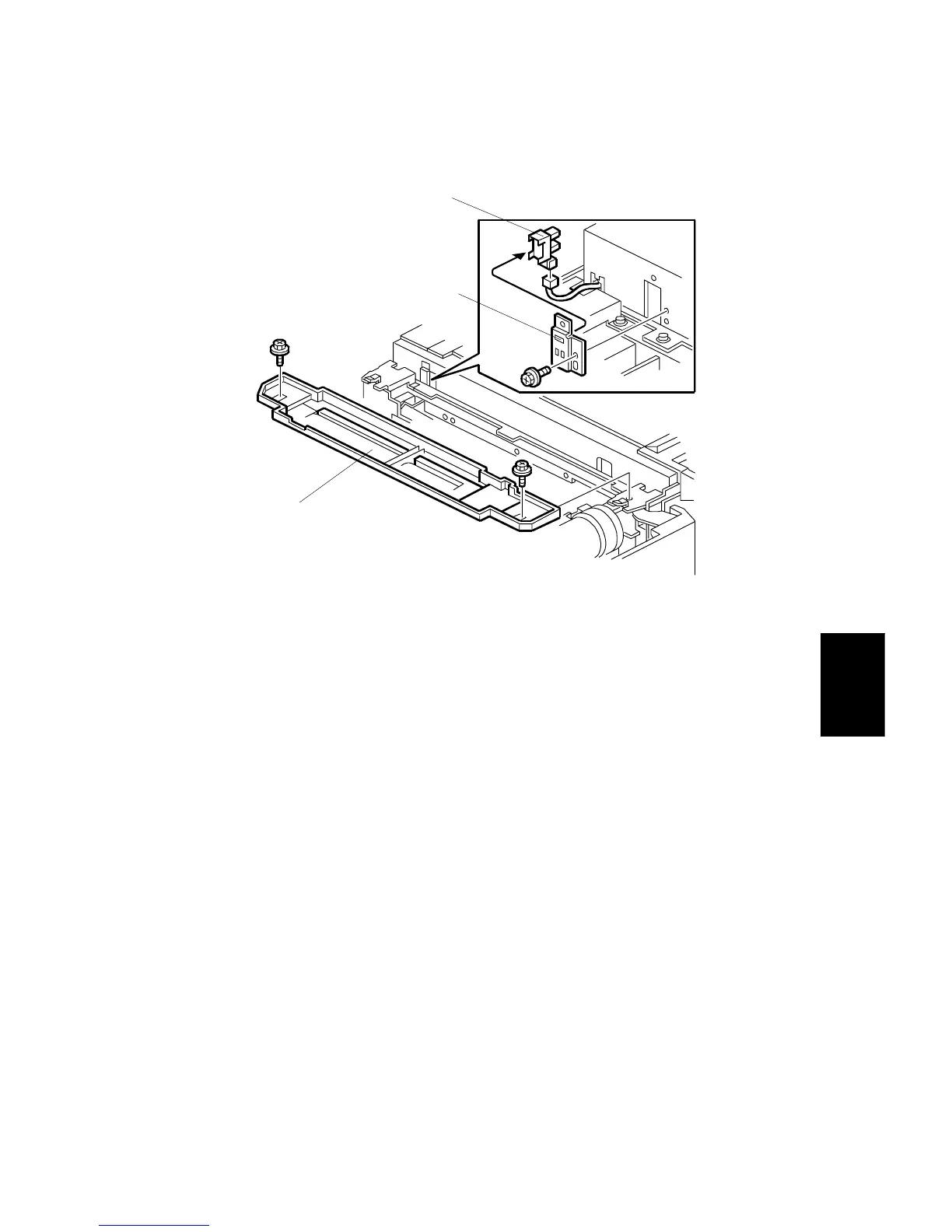

3. Remove the operation panel bottom cover [A] (4 screws – see Scanner Wire).
4. Remove the scanner H.P sensor bracket [B] (1 screw).
5. Remove the scanner H.P sensor [C] (1 connector).
A229R671.WMF
[A]
[B]
[C]
