PAPER EXIT/DUPLEX
2-118
A229 SM
Feed-out

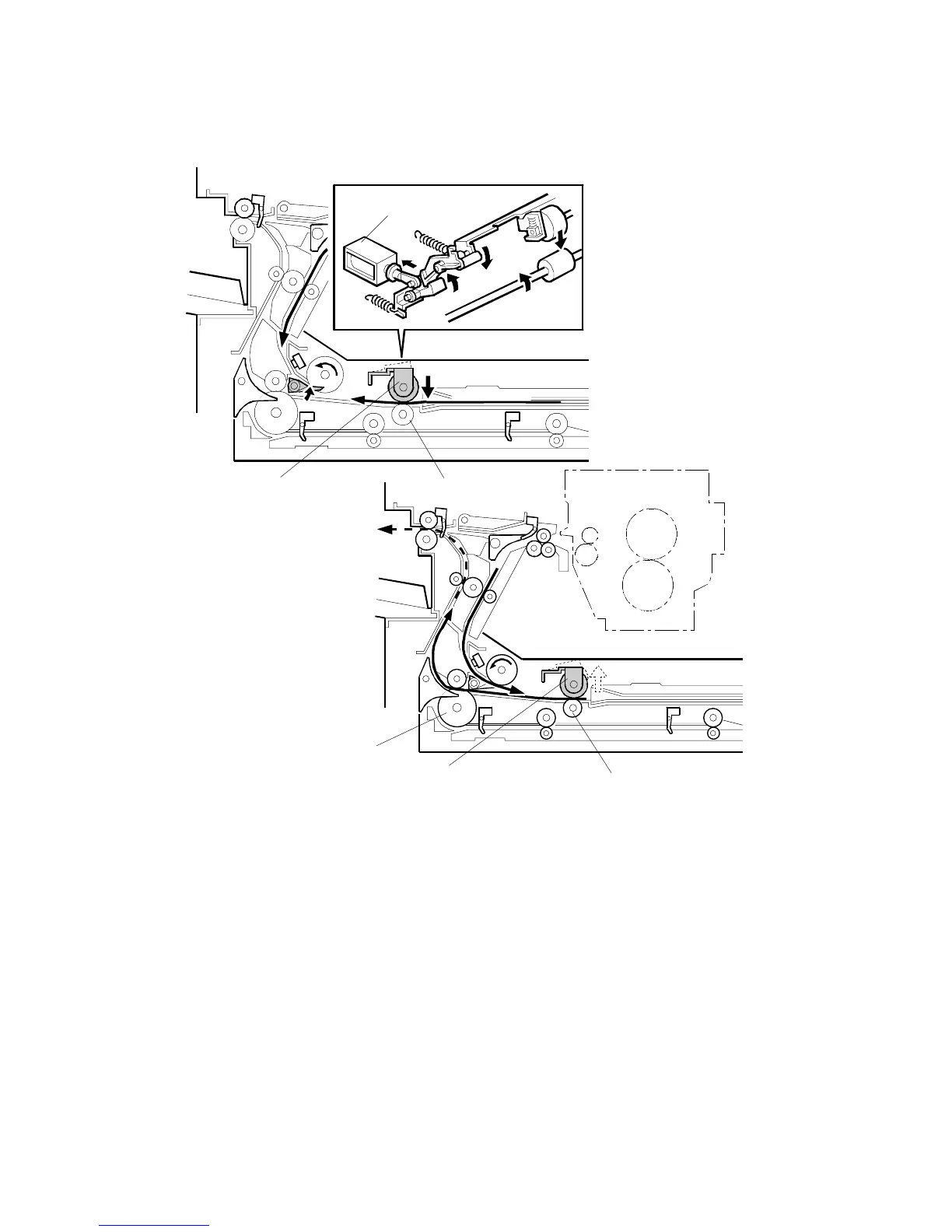

After jogging, the reverse roller solenoid [A] energizes to push down the reverse
trigger roller [B]. The reverse roller [C] turns counterclockwise continuously, so the
paper starts to reverse when the reverse trigger roller is down and catches the
paper between the rollers.
The paper is fed from the reverse roller to the inverter exit roller [D]. After the paper
starts to be fed by the inverter exit roller, the reverse trigger roller moves back up.
A229D543.WMF
[A]
[B]
[C]
[B]
[D]
[C]
To Next Page
