Ricoh A229 - Transport Belt Replacement

DOCUMENT FEEDER
SM 5-13 A229
Replacement
and
Adjustmen
t

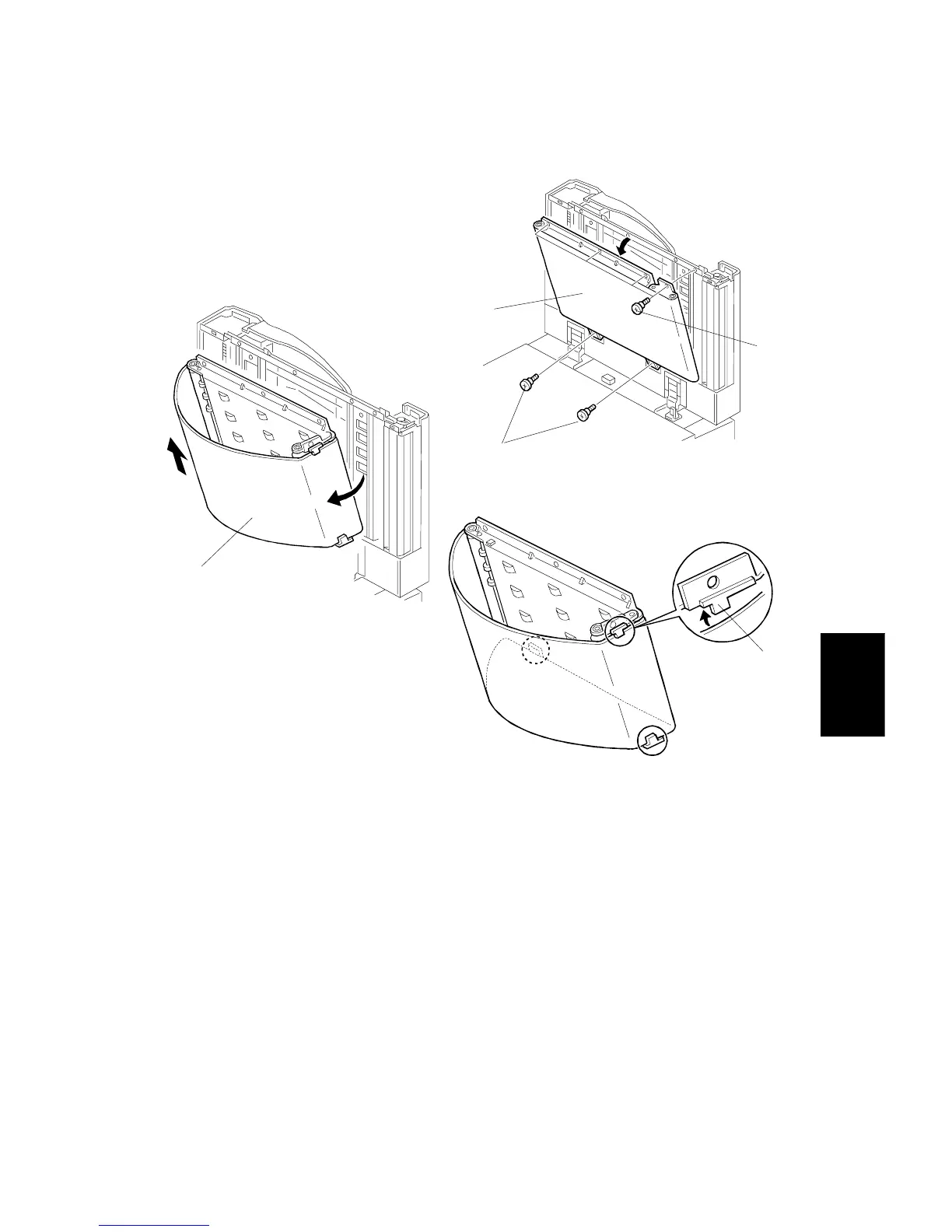

5.2.6 TRANSPORT BELT REPLACEMENT
1. Remove the front cover.
2. Remove the lower two screws [A] securing the transport belt assembly [B].
3. Remove the upper four screws [C] securing the transport belt assembly.
4. Bend up the transport belt assembly extension.
5. Pull off the transport belt [D] and replace it.
NOTE:
1) When releasing the transport belt assembly, make sure to remove the
two lower screws first.
2) When installing the transport belt, make sure that the belt runs under the
belt guide spacers [E].
3) When securing the transport belt assembly with the six screws, make
sure to secure the four upper screws first.
A806R110.WMF
A806R111.WMF
A806R112.WMF
[A]
[B]
[C]
[D]
[E]
