SCANNER UNIT
SM 5-21 A229
Replacement
and
Adjustmen
t
5.3.8 SCANNER WIRES
1. Remove the ADF.

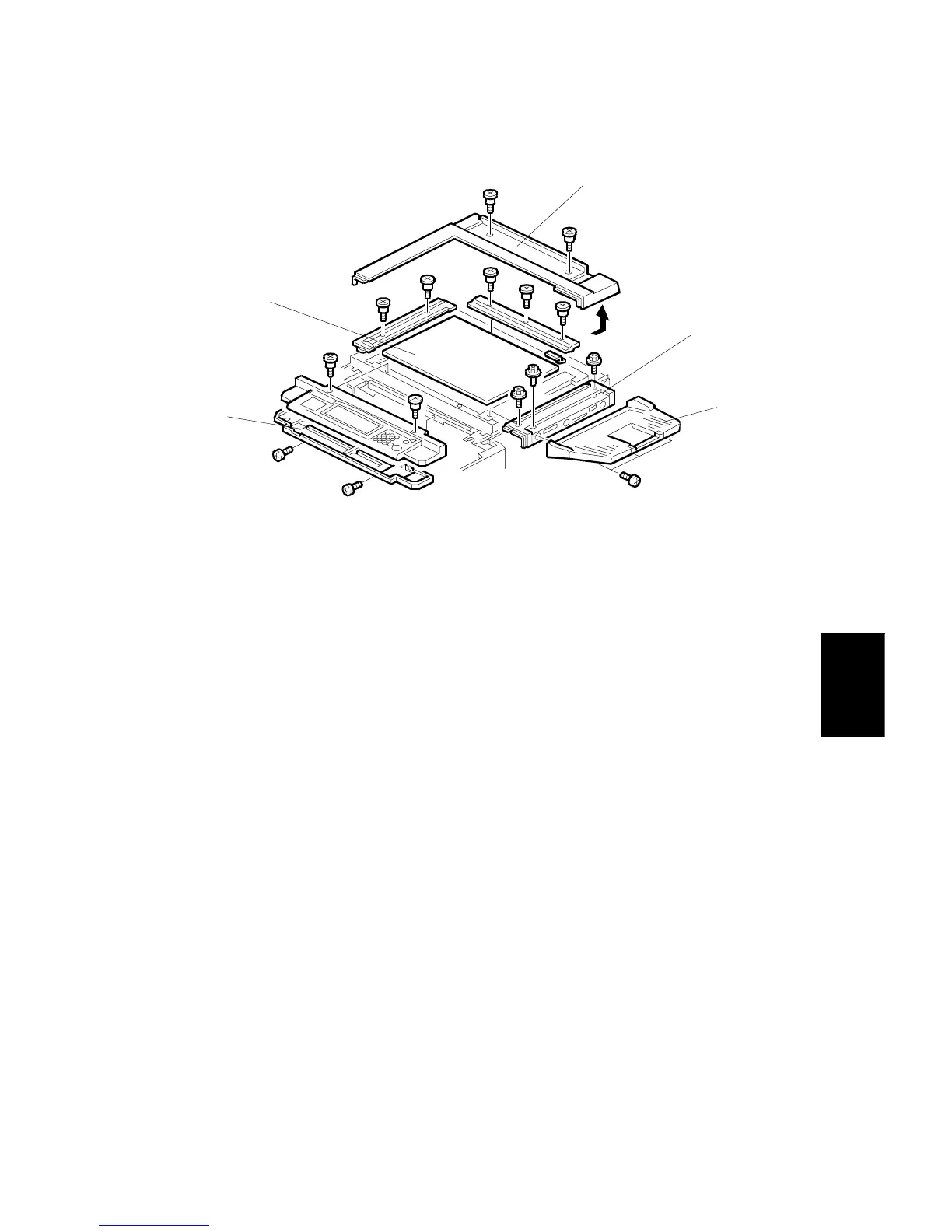

2. Remove the following parts:
•
Exposure glass [A] (See Exposure Glass.)
•
Operation panel under cover [B] (See Scanner H.P Sensor.)
•
Scanner rear cover [C] (2 screws)
•
Original exit tray [D] (3 screws)
•
Upper right cover [E] (4 screws).
A229R674.WMF
[A]
[B]
[C]
[D]
[E]
