2.9.3 FUSING DRIVE MECHANISM

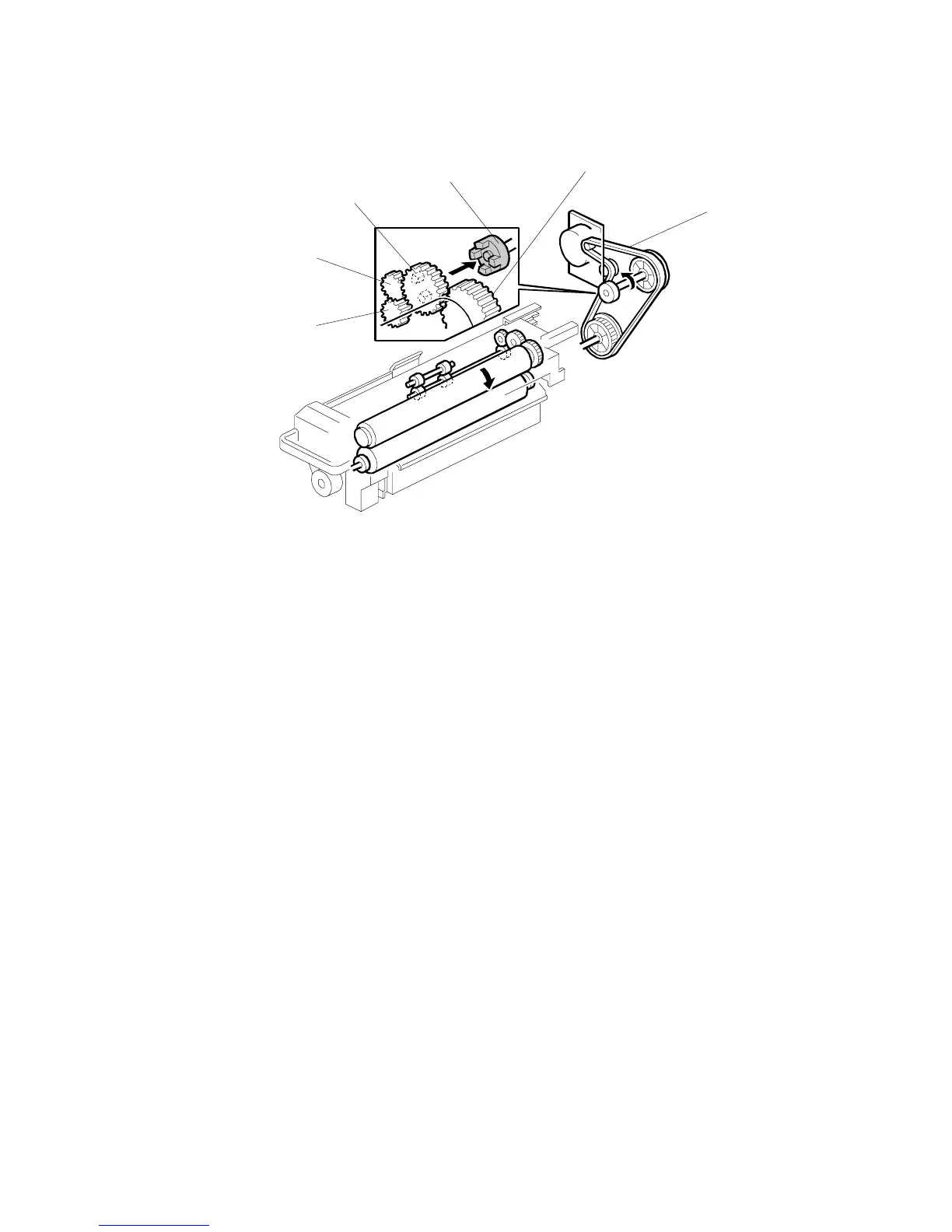

The fusing drive gear [A] transmits drive from the fusing/duplex drive motor [B] to
the gear [C], which drives the hot roller gear [D]. Rotation passes from the gear [C]
through the idle gear [E] to the exit roller drive gear [F]. The pressure roller is
driven by the friction between the hot and pressure rollers.
A229D520.WMF
[A]
[C]
[D]
[E]
[F]
[B]
