SCANNER UNIT

SM 5-15 A229

Replacement

and

Adjustmen

t

5.3.2 OPERATION PANEL

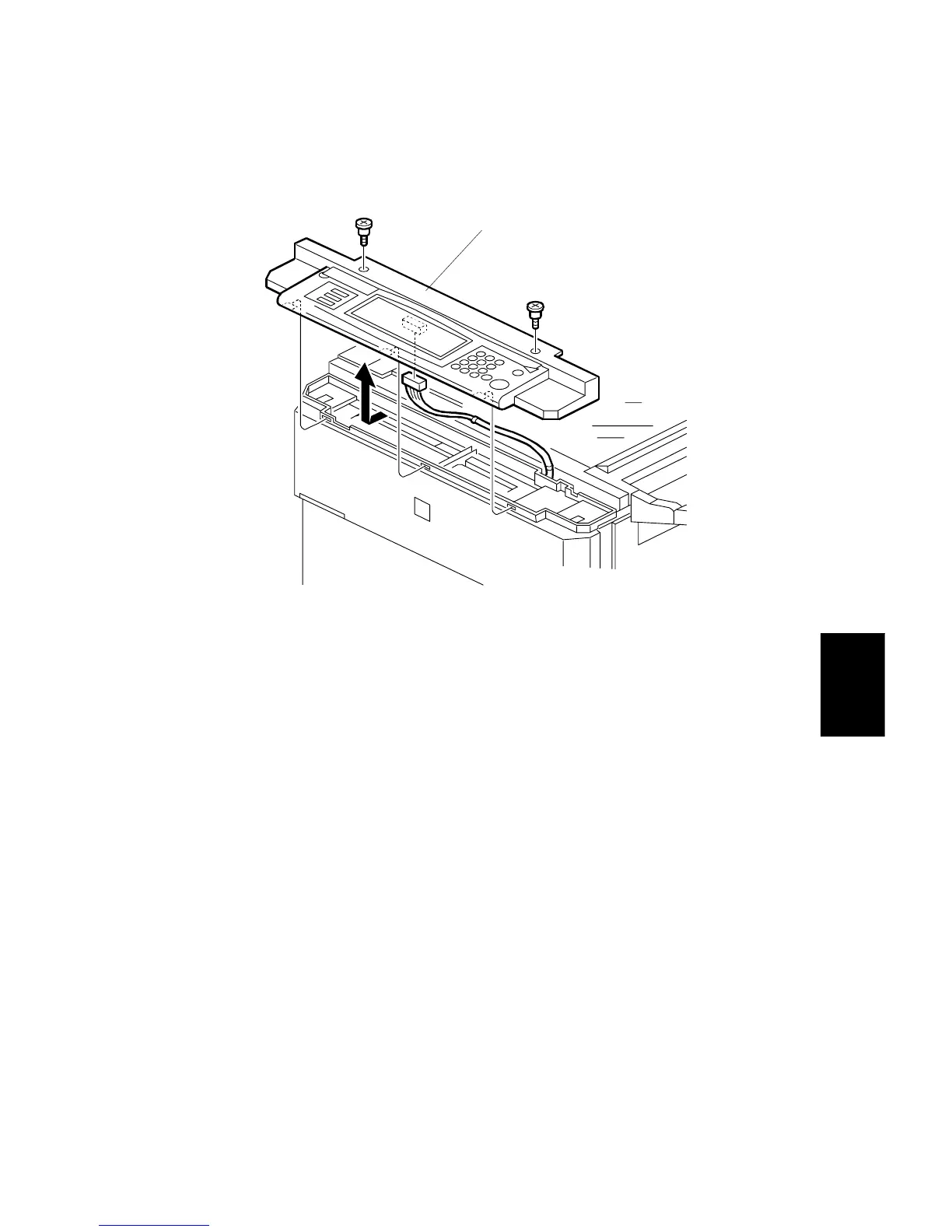

1. Remove the operation panel [A] (2 screws, 1 connector).

A229R675.WMF

[A]
