PAPER FEED MECHANISM
A229 8-6 SM
2. DETAILED DESCRIPTIONS
2.1 PAPER FEED MECHANISM

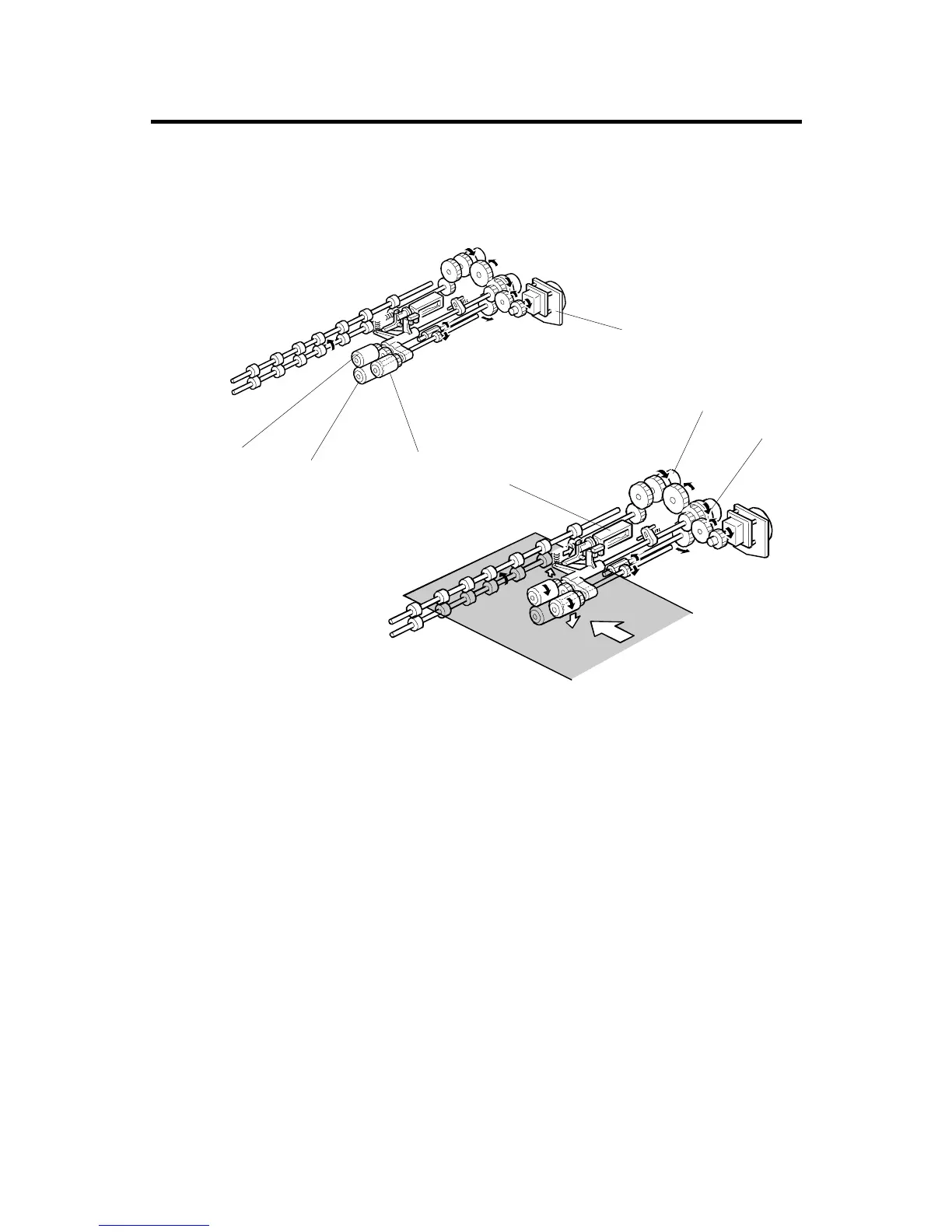

This LCT uses an FRR paper feed system (paper feed roller [A], separation roller
[B], pick-up roller [C]), and those rollers are driven by the LCT motor [D].
When the start key is pressed, the paper feed clutch [E], relay clutch [F], and pick-
up solenoid [G] energize. The pick-up roller touches the paper and feeds it to the
copier.
When the leading edge of the paper reaches the paper feed sensor, the pick-up
solenoid turns off and the pick-up roller lifts away from the paper.
A698D104.WMF
A698D105.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
