Ricoh A229 - Sensor Replacement; Entrance and Registration Sensors

DOCUMENT FEEDER
A229 5-10 SM

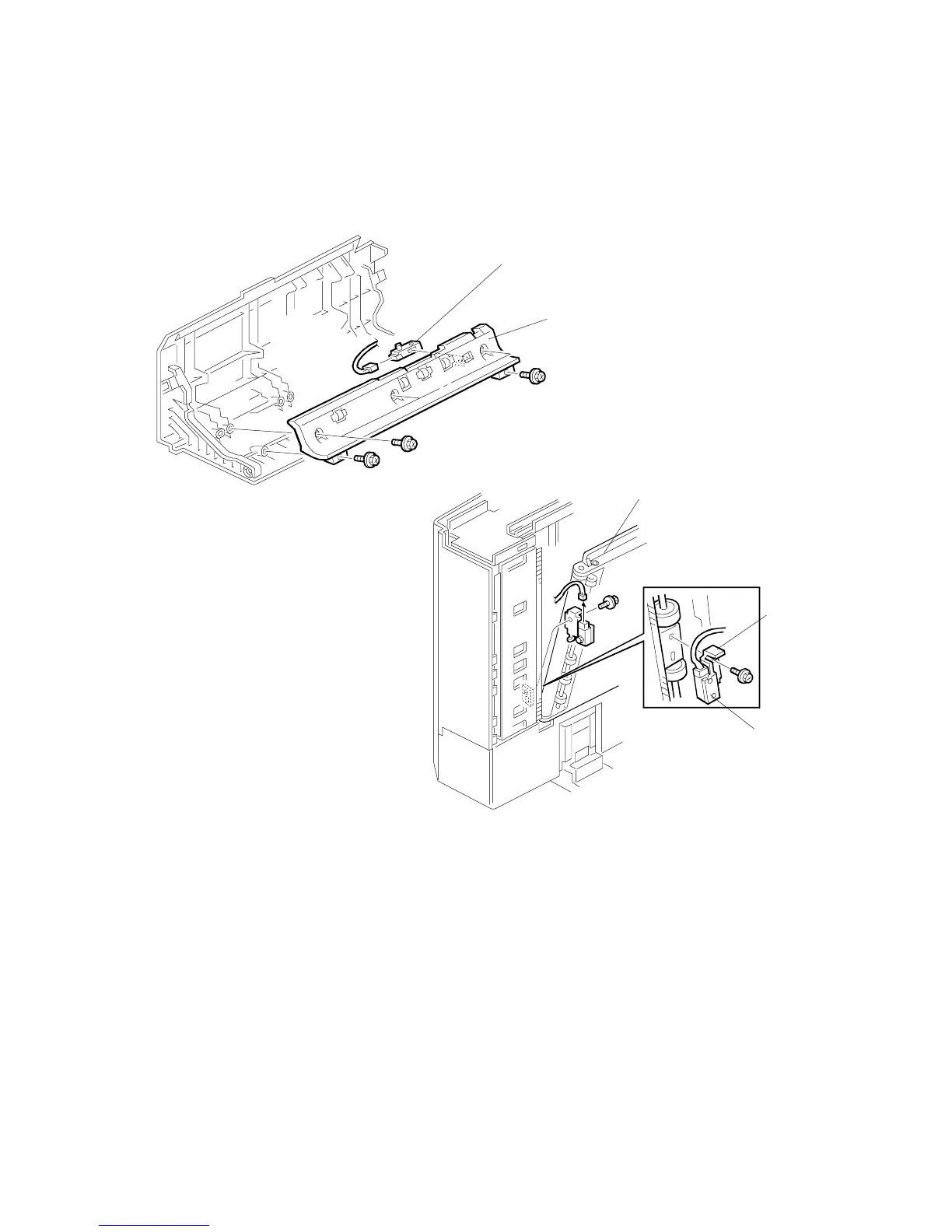

5.2.5 SENSOR REPLACEMENT
Entrance and Registration Sensors
Entrance Sensor
1. Remove the left cover.
2. Remove the guide plate [A] (5 screws).
3. Replace the entrance sensor [B] (1 connector).
Registration Sensor
1. Release the transport belt unit [C].
2. Remove the sensor bracket [D] (1 screw).
3. Replace the registration sensor [E] (1 connector, 1 screw).
A806R106.WMF
A806R105.WMF
[A]
[B]
[C]
[D]
[E]
