Ricoh A229 - A4 Sideways (2 Sheets): Sort;Stack and Punch Mode

TIMING CHARTS
SM 7-19 A229
Finisher
A697

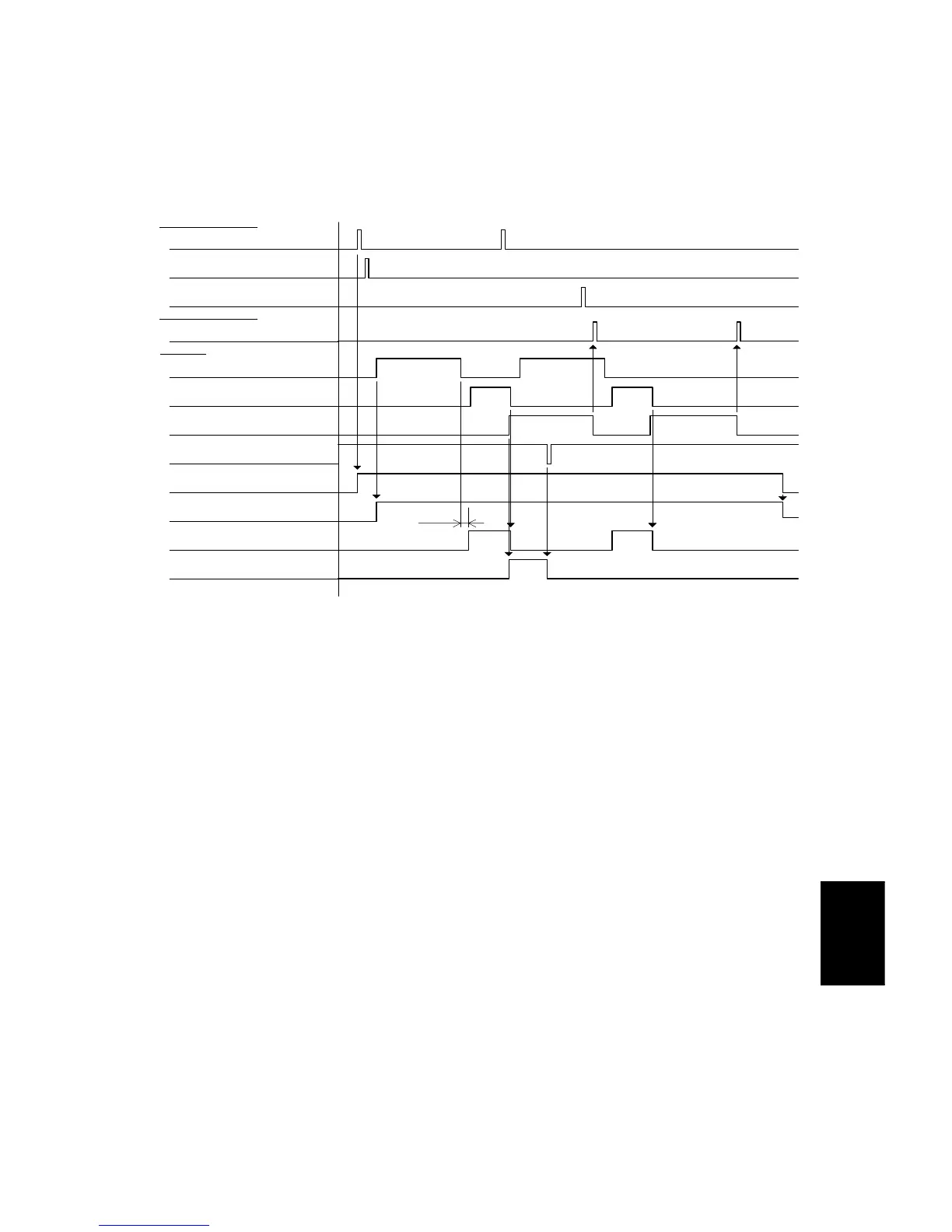

2.11.2 A4 SIDEWAYS (2 SHEETS): SORT/STACK AND PUNCH
MODE
Shift Motor
Punch Motor
Upper Transport Motor
Punch HP Sensor
Entrance Sensor
Finisher
Exit
Finisher > Copier
Motor Off
Motor On
(Exit Sensor On)
Copier > Finisher
Shift Tray Exit Sensor
78ms
Motor On
(Exit Sensor On)
Shift Tray Half Turn
Shift Tray Exit Motor
A697D514.WMF
