DEVELOPMENT AND TONER SUPPLY
SM 5-47 A229
Replacement
and
Adjustmen
t
5.6 DEVELOPMENT AND TONER SUPPLY
5.6.1 DEVELOPMENT UNIT REMOVAL
1. Turn off the main switch.
2. Open the front doors.

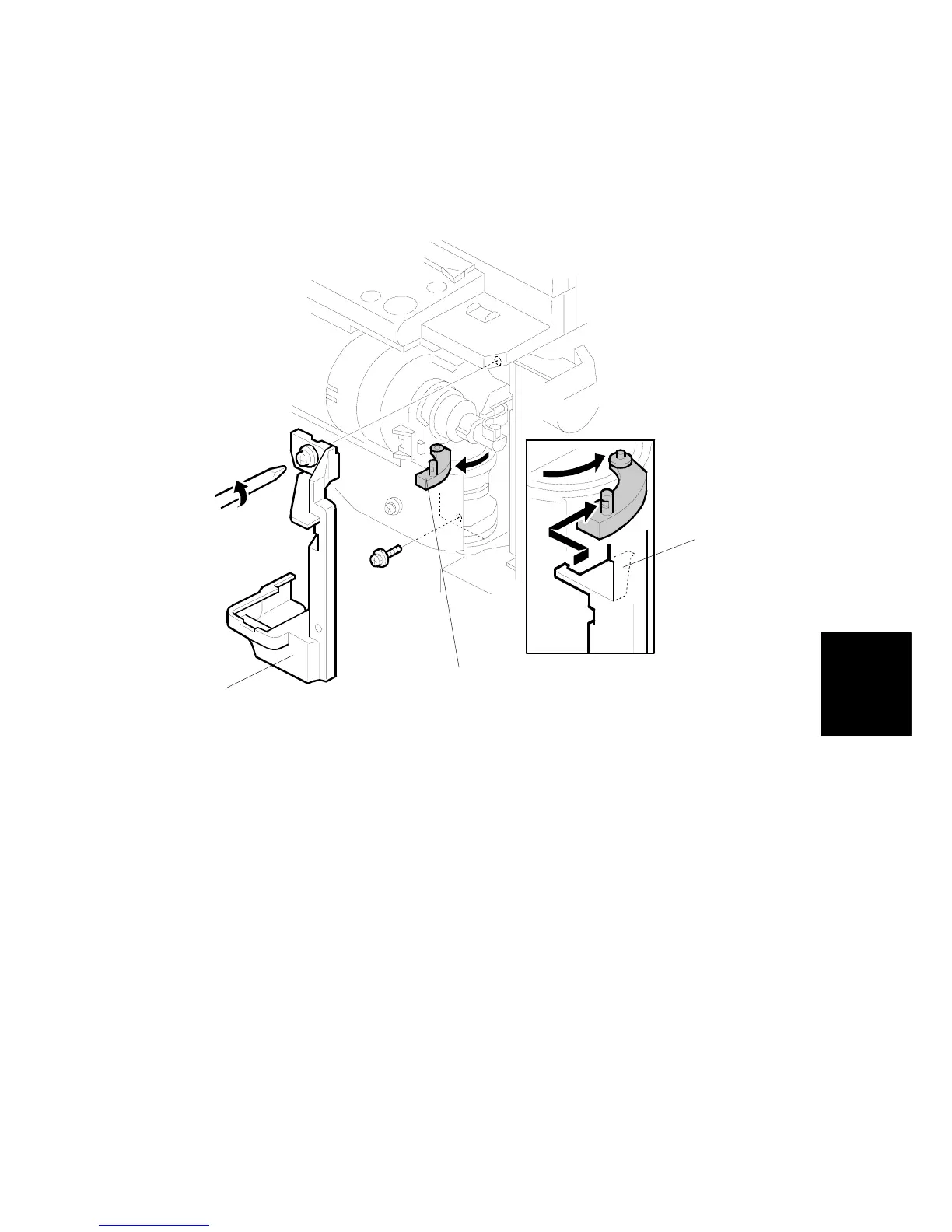

3. Remove the shutter inner cover [A]. (1 screw)
4. Release the shutter lever [B] (fully to the front).
NOTE:
When attaching the shutter inner cover [A], hang the shutter lever [B]
on the hook [C].
A229R536.WMF
[A]
[C]
[B]
Rev. 6/3/99
