COVER REPLACEMENT
SM 7-23 A229
Finisher
A697

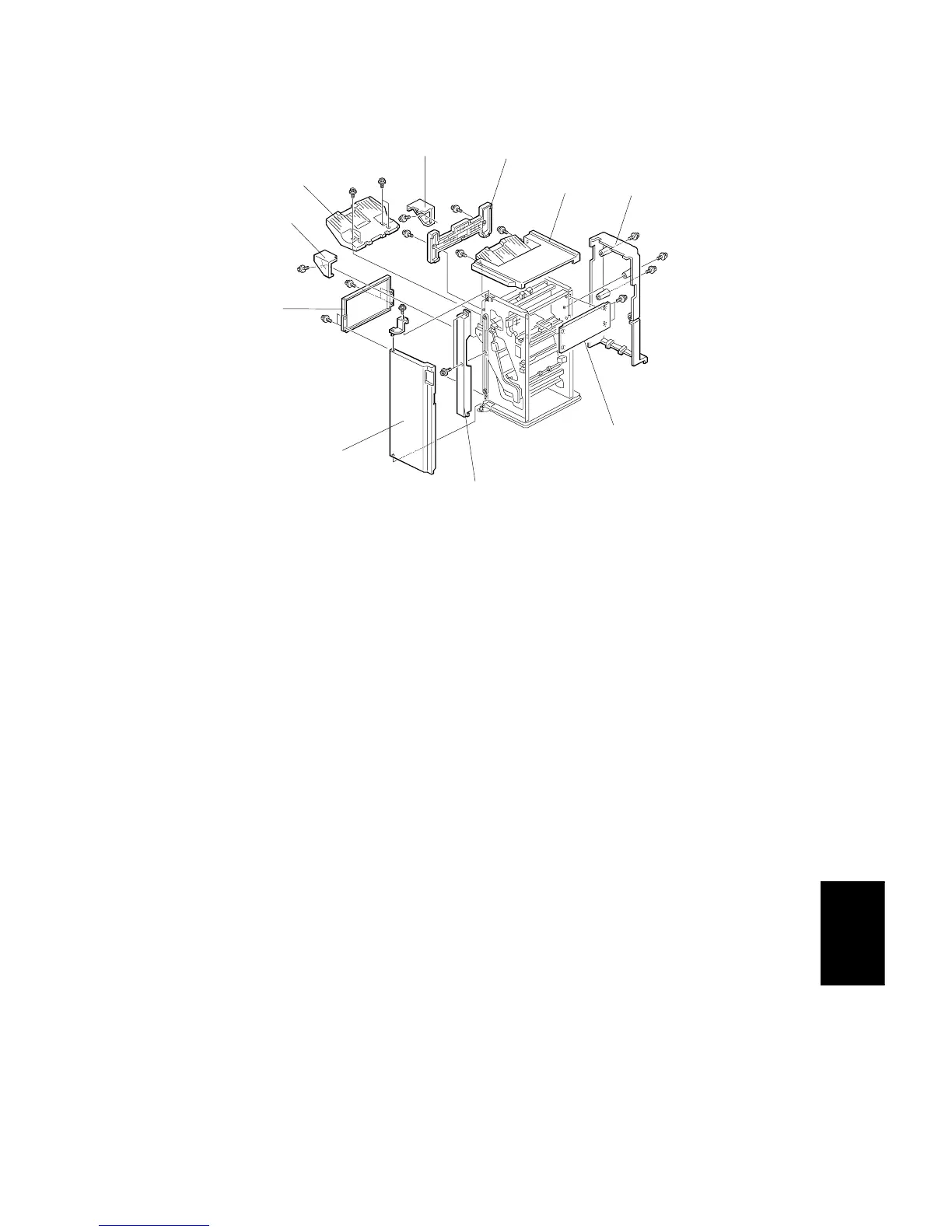

Shift Tray
1. Remove the rear cover [A].
2. Rotate the shift tray lift motor and lower the shift tray [B].
3. Remove the shift tray (4 screws).
Lower Left Cover
1. Remove the shift tray.
2. Remove the upper left cover [C].
3. Remove the upper cover [D].
4. Remove the front door [E].
5. Remove the left front cover [F].
6. Remove the lower left cover [G] (4 screws).
Right Cover
1. Remove the right cover [H] (2 screws).
Front Shift Tray Cover
1. Remove the front shift tray cover [I] (1 screw).
Rear Shift Tray Cover
1. Remove the rear shift tray cover [J] (1 screw).
A697R500.WMF
[J]
[E]
[C]
[D]
[A]
[H]
[F]
[G]
[I]
[B]
