Ricoh A229 - Timing Charts; A4 Sideways: One-Sided Original (Three

DOCUMENT FEEDER
2-14
A229 SM

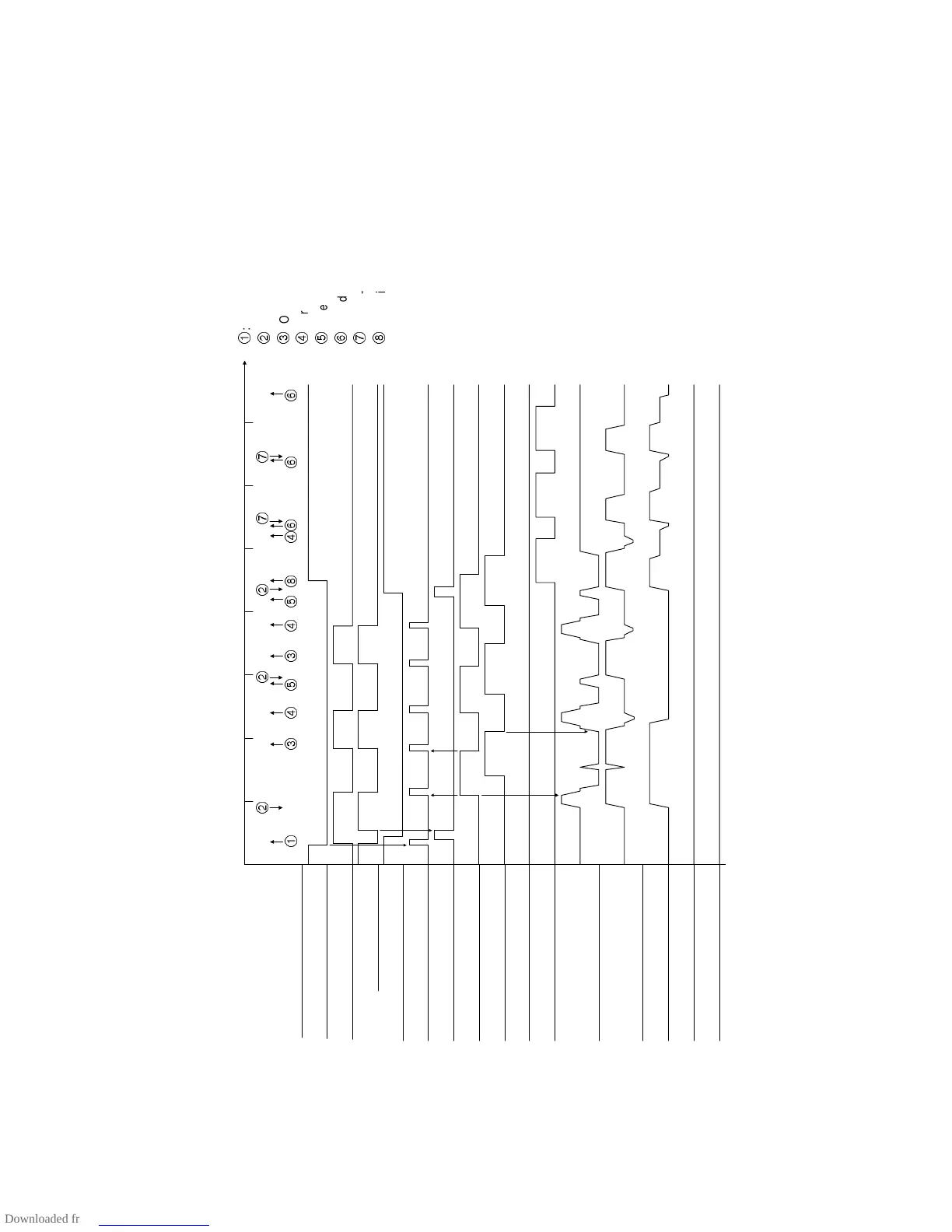

2.1.11 TIMING CHARTS
A4 Sideways: One-Sided Original (Three Pages)
Bottom Plate Position Sensor Original Set Sensor Pick-up Roller HP Sensor Bottom Plate HP Sensor Pick-up Motor Bottom Plate Motor Entrance Sensor Registration Sensor Inverter Sensor
Exit Sensor
Feed-in Motor
Transport Motor Feed-out Motor
Exit Gate Solenoid
Inverter Gate Solenoid
01234567
TXD/RXD
Time [s]

: Original is set

: Feed in/out command

: Original size detected

: Original stops

: Pre-feed completed

: Feed-out completed

: Feed-out command

: No originals remain











A806D504.WMF
